Listing ID#10222949
ModelCPC15/20
CategoryMachinery
Quick answer

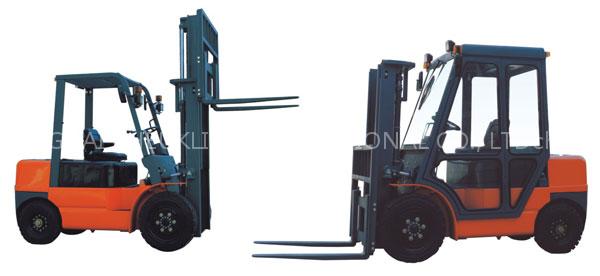

Diesel Forklift CPC15/20 is a Machinery product. Key specs — Brand: Cheuklift; Origin: CHINA.
Product Description
| Model | unit | CPC15 | CPC20 | |
| Feature | PowerType | Diesel | ||
| RatedloadQ | kg/lb | 1500/3300 | 2000/4400 | |
| Loadcenter distance+C | mm/in | 500/19.7 | ||
| Liftingheight | mm/in | 3000/118 | ||
| Freeliftingheight | mm/in | 135/5.3 | 110/4.3 | |
| Forksizes*e*L | mm/in | 1070x100x40/42x4x1.6 | ||
| Gantrytiltbefore /after | deg | 6-12 | ||
| Turningradius | mm/in | 1950/76.8 | 2170/85.4 | |
| Driveshaftcenter distance(under thewheelbase) | mm/in | 105/4.1 | 120/4.7 | |
| Centerdistanceof theground(the centralbody) | mm/in | 170/6.7 | 115/4.5 | |
| Performance | Minimumwidthof right-anglestacking | mm/in | 2090/82.3 | 2100/82.7 |
| Maximumspeed (empty) | km/h | 17.3 | 19.5 | |
| Maximumclimbing abilityoffullload | % | 20 | ||
| Size | Thebiggestlifting speed(fullload) | mm/s | 400 | 550 |
| Totallength withforks | mm/in | 3310/130.3 | 3528/138.9 | |
| Totallength withoutforks | mm/in | 2340/92.1 | 2458/96.8 | |
| Totalwidth | mm/in | 1110/43.7 | 1155/45.5 | |
| Body | Minimumheight withmastdown | mm/in | 1995/78.5 | 2060/81.1 |
| theoverall liftingheight | mm/in | 3990/157 | 4030/158.7 | |
| Fronttire | 7.00-9-10PR | 7.00-12-12PR | ||
| Reartire | 5.00-8-8PR | 6.00-9-10PR | ||
