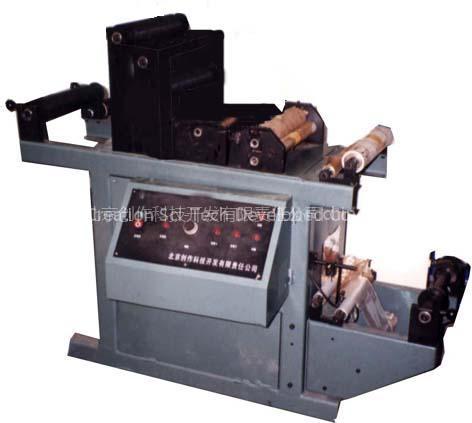

Die Cutting Machine

The automatic PSA label die cutter is use for cutting roll with blank PSA label or printed label. partiador suit for die cutting lasar holographic label with cursor and tripping.

Main characters:

1. automatically light deviation and coustantly tension rectify

2. high-speed die cut, repeatly precisely orientate

3. PC control, light and program control random data set

4. movable rotating cut sepport, position precisely adjust

5. independently waste roll up. smoothly strip out

6. two product roll up systems, stip separation and roll-up tidy

Main characters:

1. passable width: 340mm cutting area:200×200mm2 300×200mm2

2. cutting speed: Max 250times/min

3. cursor orientation precision: 0.05mm

4. deviation rectifying precision: 0.1mm

5. maximum roll width:unrolling 500mm rolling-up:400mm,waste roll:350mm

6. minimum strip width:12mm

7. paper base:>60g/m2 glassine paper

8. power supply: AC220V±10%, 2KW

9. size:2450*1000*1400mm3

10. weight:700kg
