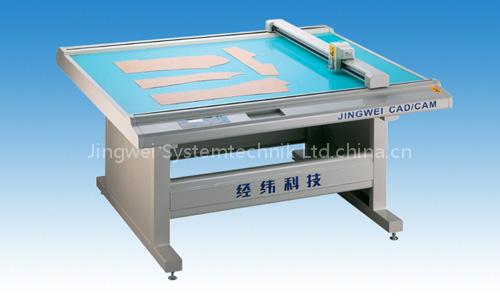

Cutting Plotter (for apparel patternmaking)_EDO-1862A

EDO-1862A, BASIC model of Jingwei flatbed cutting plotters for apparel patternmaking, is able to process kinds of media up to 2mm thick, with dual toolhead for both cutting and plotting. (Valid Cutting Area: 1500mm*900mm)

1. Easy to operate.

2. Compatible with any CAD software.

3. High speed and accuracy.

4, Stable performance with long using lifetime.

Specification:

Model: EDO-1862A

Max. Cutting Speed: 800mm/s

Max. Cutting Depth: 2mm

Cutting Media: Kinds of hard cardboards, plastic boards, PVC boards, M.G. wrapping paper, kraft paper and fibrous boards,etc.

Toolhead: Cutting knife + Plotting pen

Compatible Pen: Gel-ink Pen, Water-based fiber-tip pen, Oil-based pen, Ballpoint, etc.

Compatible Cutting Knife: Special steel knife, Tungsten steel knife

Media-fixture Method: Vacuum absorption

Repeat Precision: ≤0.1mm

Programmable Resolution: HP-GL 0.025m, 0.01mm, 0.1mm available

Interface: Serial port and Parallel port

Access Buffer Capacity: 512 MB

Command Mode: HP-GL compatible format

Operation Panel: LCD touch button panel

Transmission System: Stepper motor + Synchronous belt

Working Voltage: AC 220V ±10%, 50HZ

Valid Cutting Area: 1500mm*900mm
