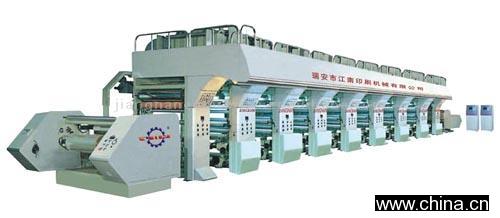

Computerized Rotogravure Printing Machine

Model No.:YAD Product Origin:China Brand Name:JIANGNAN Price Terms:FOB, CFR, CIF Payment Terms:T/T, L/C Certification:ISO9001, CE Description:This product has been developed on the national and imported rotogravure equipment. The width of printing is 800mm and 1050mm.

It has good appearance in design and convenient operation and is suitable for printing roll plastic film, paper, cellophane and other package materials. The printing could be finished on time continuously with many colors.

It has such characteristics as high efficiency, wide printing scope, abundant and delicate printing result, brilliant ink color, strong color retentivity, besides those, it is longeval.

Currently, it is a kind of ideal printing equipment as it has excellent quality, low cost, right price which especially used for large quantity printing such as package printing of cigarette, wine, and medicine.Functions:1) Roller core adopt air-expansion type 2) Unwinding and rewinding units: they adopt turnover double station rolling and releasing structure, receiving and replacing material without stopping the machine3) Tension control system: releasing tension adopt vector motor to control, rewinding adopt frequency converter control 4) Transmission section: the main motor adopts frequency control of transmission speed, it has precise wheel gear, so the transmission is accurate, the noise islow and the whole machine is drived steadily 5) Printing unit:a) It adopt pneumatically pressurizes or unpressurizes and has protective locking function.

Pressure could be randomly adjusted b) The angle of scraper is adjustable in three-dimension. The knife move back and forth so as to ensure the better graph quality and the longer lifethe scraperc) Printing wall board is thick high-density cast iron with good shake.

It makesa foundation for press operation with high speed 6) Ink-feeding system: it adopts ink spraying box which is the most advanced install in China.

It can increase the ink strength to ensure the graph qualityink circulation system in formatted and the ink in the box is used fully7) Dry system: for that the ink in the plastic film can be dried as soon as possible,every printing unit install a heat-drying box and natural drying box.

It adoptsairproof high effective dry system and adjusts dry temperature automaticallyelectric power, so it can save energy and provide a better operationenvironment for the workers8) Automatic color register system: it adopts advanced computerized auto register system which has high register accuracy, so it saves time and materialat the startPacking:Exported worthy wooden case
