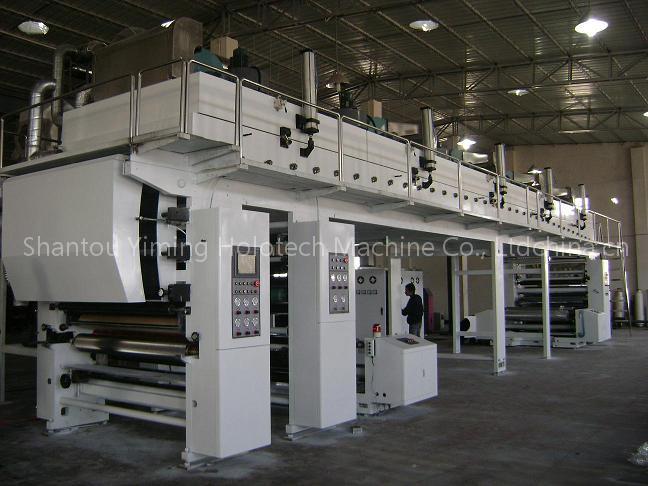

Coating Machine
Listing ID#10174675
ModelYM
CategoryPrinting Machine
Printing Machine

Coating Machine

Specifications

Origin
Shantou, Guangdong,China
Request Quote
Quick answer

Coating Machine is a Printing Machine product. Key specs — Origin: Shantou, Guangdong,China.

Product Description

Design Principles of YM-MYM CA-1650A

The frame construction is a precision-engineered that enables to meet the high requirement on foil used as holographic coated and so on.

With Yiming Paten heating system can reduce Energy by 50% compared with normal coating machine. We guarantee of a high degree of accuracy for the finishing process with online measurement. This can be ensured at the time of purchase.


Specification

1. Working width:1650mm

2. Coating material: PET 12~60mic, OPP/BOPP: 15~60mic

3. Machine speed: 220m/min, coating speed: 200m/min

4. Re-winder/Un-winder OD: 800mm

5. Re-winder/Un-winder air shaft roller: 6

6. Web guide system: Base style EPC

7. Main heating tunnel: 15000mm, six zone, Inside steel

8. Re-winder: stick roller

9. In/out-feed Nip roller : Right and left pressure separate adjustable

10. Coating roller: Right and left pressure separate adjustable

11. Size(L x W x H) : 16 x 3.2 x4.5m
