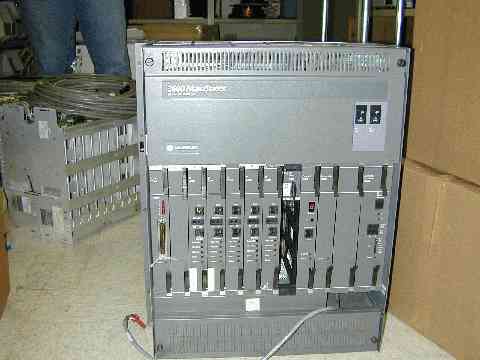

Canada New Bridge 3600 And 3624

Specifications: Key Features The 3600 MainStreet Bandwidth Manager offers the following: - flexible, multiservice delivery platform - wide range of voice and data interfaces, resource cards(X25, frame relay, voice compression, sub-rate switching) in addition to T1/E1 and SONET OC-3 and SDH STM-1 aggregate interfaces - full compatibility with existing 3600/3645 MainStreet universal card slots(UCS)- MainStreetXpress 46020/48020 network and services management for end-to-end services management - sub-rate,64 kbit/S, wideband and broadband switching in a single platform - suitable for hybrid circuit/packet switched applications - high capacity UCS+ slots for current and future service needs - full equipment, interface, control and power redundancy Applications The 3600 MainStreet Bandwidth Manager is a multiservices delivery platform that can be used in carrier and large corporate Networks as well as in end user applications.

Some typical applications include: - carrier special service overlay networks - corporate/utility integrated access/transport - carrier integrated access Flexible Architecture The 3600 MainStreet Bandwidth Manager Builds on the architecture of the successful 3600 MainStreet Bandwidth Manager by Adding wideband/broadband SONET/SDH Switching functionality and increased Narrowband switching capability.

Full Compatibility with the 3600/3645 MainStreet Bandwidth Manager permits seamless integration Of the 3600 MainStreet Bandwidth Manager into existing networks.

The shelf supports 16 UCS/UCS+ card slots Providing 4 Mbit/S of 64 kbit/S narrowband Bandwidth for compatibility with all existing 3600 MainStreet UCS cards, as well as 16 Mbit/S narrowband and 155 Mbit/S wideband/broadband bandwidth for UCS+ cards.

Three redundant high speed aggregate(HSA)slots provide 64 kbit/S of narrowband and 622 Mbit/S of broadband capacity allowing The provision of 155 Mbit/S SONET OC-3
