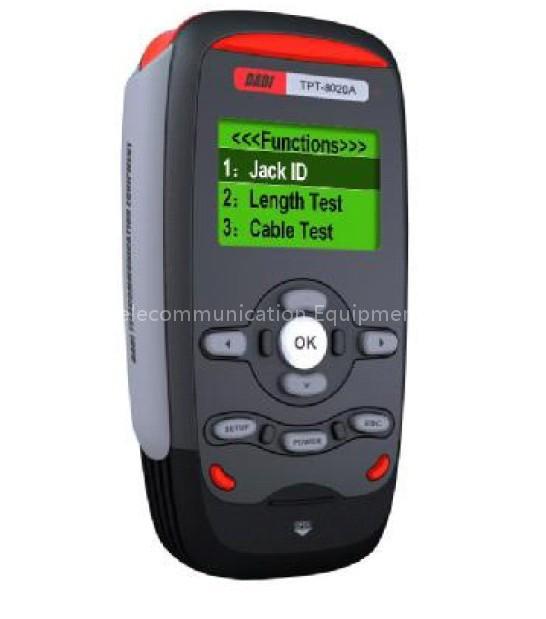

Cable and Network Tester (TPT-8020A )

Overview:

The TPT-8020A is an easy-to-use and portable test set with advanced cable

locator and simple network tester in one unit. Besides identifying wire map

measuring the cable length, diagnosing cable faults and tracing cables, the

TPT-8020A can also be used to simply perform network testing. It is an

absolutely necessary tool for cabling construction and network maintenance.

Functions:

Cable Test

1.Length measurement---twisted-pair, phone line, coax and wires, etc

2.Wire map testing--- display wire map; conduct tests of STP/UTP and

diagnoses faults for shorts, opens, reversals, mis-wires and split pairs

and perform cable tests per T568A/B standard

3.Tone tracing: generate up to 4 distinctive tones for tracing cables in the ceiling and DDF. (Audio line-tracking optional)

4.Port identification: identify port and jack type. e.g. Ethernet and Telephone, with speed and duplex displaying; support 1000M in maximum

Network Tester

1. Flash port LED--- to locate a hub or switch port
2. Ping test and packet loss detection
3. Support static and dynamic (DHCP) IP configuration

Net Scan--- Verify active host quantity in the set Subnet and display IP.& MAC Add

Others

1.Auto-off (power saving)

2.Backlight LCD display: operational even in the darkness

Features:

1.Comprehensive functions: support cable testing and network testing

2.Tone tracing: locate the cable on DDF without sorting out cables

3.Net Scan: fast scan all of the active hosts in the LAN

4.Test several cables simultaneously by selecting multi-remote ID
