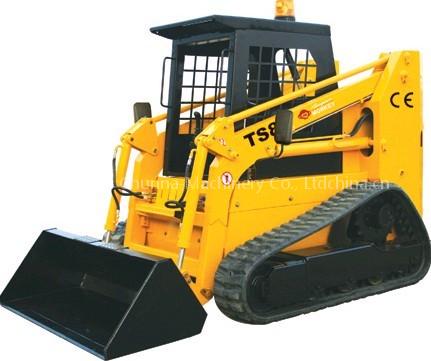

CE and EPA TS series crawler loader
Specifications
- Origin
- China
CE and EPA TS series crawler loader is a Other Construction Machinery product. Key specs — Origin: China.
Product Description
Product Information
can supply various attach tools for skid steer loader, Fork, 4 in 1 bucket, digger, auger, trencher, mower, angle blade, pallet fork grapple, fork grapple, fork grapple with bucket, planer, hydraulic breaker, sweeper, Concrete Mixer, Snow Blower, Mower etc. With trailer packing for package deal.
can also design and manufacture various attachment according to customer’s requirements, OEM, in conformity drawing and data.
Specifications | |
Rated operating capacity(kg) | 1200 |
Tipping load(kg) | 2400 |
Bucket capacity(m3) | 0.4-0.5 |
Operating weight(kg) | 4000 |
Max. travel speed(km/h) | 10/20 |
Hydraulic pump flow(L/min) | 75/130 |
Fuel tank capacity(L) | 85 |
Overall dimensions(mm) | 3385×1850×2025 |
Dimensions | |
Height at maximum extension(mm) | 3780 |
Height to bucket hinge pin(mm) | 2920 |
Width with bucket(mm) | 1850 |
crawler width(mm) | 320 |
Wheelbase(mm) | 1500 |
Ground clearance(mm) | 200 |
Engine | |
Maker/Model | CUMMINS 4BTA3.9-C100 |
Net power | 80hp/2500rpm |
Type | 4 Cylinder in-line Water cooled, 4 stroke,Diesel engine |
Displacement(L) | 3.9-4.2 |
Standard Open-type operator cab Hydraulic joystick controls Standard bucket | |
Auxiliary hydraulic couplers | |
Optional | |
Enclosed operator cab with A/C Hydraulic system | |
Attachments Backhoe, Breaker, Angle blade, Auger, Sweeper, Pallet fork Combination bucket, Mower, Asphalt cutter | |
