Bulldozer
Specifications
- Origin
- China(mainland)
- Price Term
- EXW
Bulldozer is a Other Construction Machinery product. Key specs — Origin: China(mainland); Price Term: EXW.
Product Description

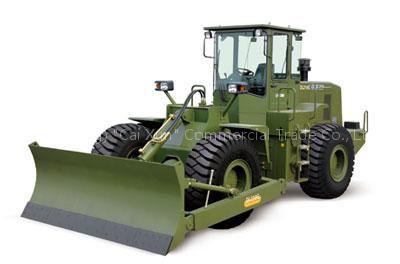

Bulldozer Machine has a good overall layout, compact structure, reasonable layout of the center of gravity, good stability, good body and running line with a buffer effect. Optional equipment includes automatic oiling device, auto-track tensioning device, freon-free air conditioning, ripper, etc.
Item Unit Parameter Blade maximum lifting height mm 1000 Maximum depth of cut into the blade Mm 380 The maximum amount of blade roll Mm 500 Maximum traction force kN 141 Hinge angle ° 35 Minimum turning radius (tire center) Mm 6500 Gradeability ° 28 Wheelbase mm 3410 Wheelbase mm 2200 Speed files (front / rear) Km / h 11.5/16.5 File (front / rear) Km / h 37 Engine Model WD10G220E21 Rated power / speed 162KW/2200r/min L × W × H mm 7357 × 3354 × 3485 Weight t 17 Tire size 23.5-25
