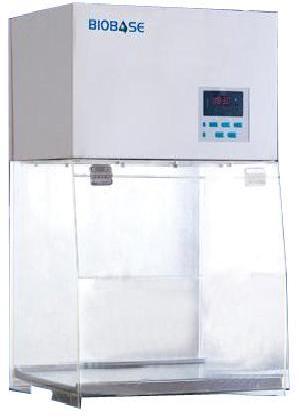

Biological safety cabinet--Class I

The Class I Biological Safety Cabinet is a negative-pressure, ventilated cabinet usually operated with an open front and a minimum face velocity at the work opening of at least 75 linear feet per minute (lfpm). All of the air from the cabinet is sent through a HEPA filter, either into the laboratory or to the outside.

Operating Range 1.1 Running conditions 220V~240V / 50Hz ~ 60Hz 1.2 Operating temperature range: 15-35℃ 1.3 Operating humidity range ≤85% &nbsp Parameter and Function 2.1Materials 2.1.1Configuration: constituted of light-permeable(visible)PMMA 2.1.2 Work desk: Stainless steel 2.1.3 Main units connected flexibly with features of small tremble and low noise 2.1.4 The whole configuration more reasonable and ergonomic 2.2 Filter 2.2.1 One HEPA filter 2.2.2 Filter efficiency: 99.999%(0.3μm) 2.2.3 Display the pressure differential in HEPA filter, audible &visible 2.

3 Blower&nbsp 2.3.1 Blower fan bearing unlimited speed gear 2.3.2 Centrifugal fan, low noise and energy consumption, capable of functioning without maintenance 2.4 Airflow Velocity 2.4.1 Air velocity: 0.75 m /s ~ 1.0m/s 2.4.2 Air dust blowing vertical 2.4.3 Air velocity of blower: adjustable 2.5 Workroom Interior 2.5.1 Lighting >500lux 2.5.2 UV Lamp: Sterilizing by UV lamp.

It adopts High-intensity, long life, Ozone-free UV lamp 2.6 Size 2.6.1 External size(L* W* H): BYKG-I: 550 x 465 x 780mm BYKG-II:700 x 550 x 900 mm 2.6.2 Internal size(L*W *H): BYKG-I: 540 x 385 x 400mm BYKG-II: 680 x 450 x 500 mm&nbsp 2.7 Noise:
