Listing ID#10223005
ModelFE3D20AC
CategoryMachinery
Quick answer

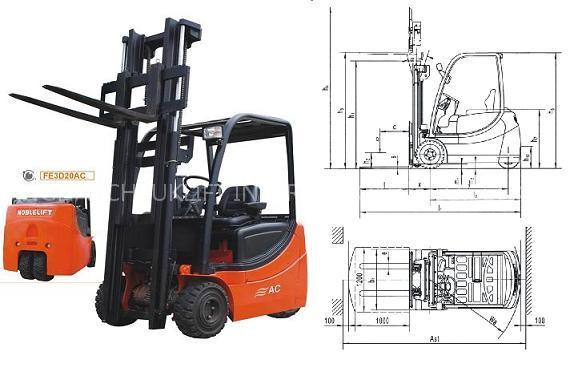

Battery Forklift FE3D20AC is a Machinery product. Key specs — Brand: Cheuklift; Origin: CHINA.
Product Description
| Identification | 1.1 | Manufacture(abbreviation) | Noblelift | |
| 1.2 | Manufacturer’stypedesignation | FE3D20AC | ||
| 1.3 | Drive:electric(batteryormains),diesel,petrolgas,manual | electric | ||
| 1.4 | Typeofoperation:hand,pedestrian,standing,seated,order-picker | seated | ||
| 1.5 | LoadCapacity/ratedload | Q(kg) | 2000 | |
| 1.6 | Loadcenterdistance | C(mm) | 500 | |
| 1.8 | Loaddistance,centreofdriveaxletofork | X(mm) | 390 | |
| 1.9 | Wheelbase | y(mm) | 1458 | |
| Weights | 2.1 | ServiceWeightincl.battery(seeline6.5) | Kg | 3940 |
| 2.2 | Axleloading,ladenfront/rear | Kg | 4947/900 | |
| 2.3 | Axleloading,unladenfront/rear | Kg | 1680/2260 | |
| Wheels,Chassis | 3.1 | Tyres:solidrubber,superelastic,pneumatic,polyurethane | SE | |
| 3.2 | Tyressize,front | 21X8-9 | ||
| 3.3 | Tyressize,rear | 16X6-9 | ||
| 3.5 | Wheels,numberfront/rear(x=drivenwheels) | 2x/2 | ||
| 3.6 | Trackwidth,front | b10(mm) | 920 | |
| 3.7 | Trackwidth,rear | b11(mm) | 190 |
