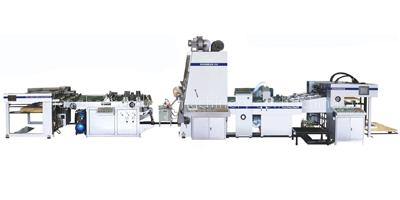

Automatic OPP Film Laminating Machine

Description of Automatic OPP Film Laminating Machine:
1. After water-based gluing, the material would comes through the main drying wheel for drying, and would be conveyed to laminating unit by feeder simultaneously.
2. The sticking wheel would paste the OPP film to the paper by heating and pressing.
3. Main drying wheel and sticking wheel adopt hot water circulation system for quick heating and accurate control.
4. The finished products could be rolled for rewinding, or, be cut by disk blade and pull-peel for stacking.

Application of Automatic OPP Film Laminating Machine:
1. The new generation MOONBEAM-104 water based OPP laminating machine is newly-built on the basis of the latest technology.
2. This type of packaging converting machine is extensively applied to laminating the water/solvent based adhesive and pre-coating films, being multi-functional, efficient and energy saving (60m/min, working power: 50kw)

Standard Equipment of Automatic OPP Film Laminator:
1. Automatic paper feeder
2. Gluing, drying, and laminating system
3. Disk blade cutter (option)
4. Automatic paper collector (option)
5. Water heating system
6. Air compressor

Optional Equipment
1. Single seat powder cleaner
2. Double seat powder cleaner
3. Electric paper collector
4. Static treatment device

Technical Specification of Automatic OPP Film Laminating Machine:
