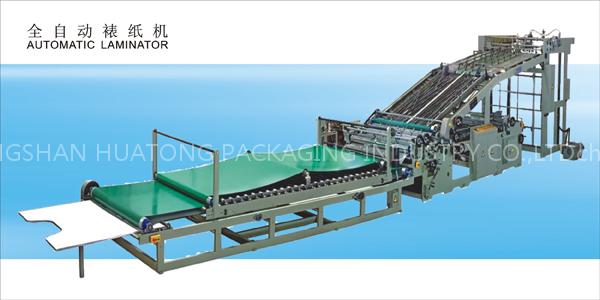

Automatic Laminator,Automatic laminating machinery
Listing ID#10211876
CategoryPrinting Machine
Printing Machine

Automatic Laminator,Automatic laminating machinery

Specifications

Brand
HUA TONG
Origin
China
Request Quote
Quick answer

Automatic Laminator,Automatic laminating machinery is a Printing Machine product. Key specs — Brand: HUA TONG; Origin: China.

Product Description

General Features

* Fully a automatic according type paper and Board width adjustment,

system can be adjusted

* Easily, saving time for adjustment.

*PVC pressure and convey belt, with high quality

* Performance and stability, easy maintenance.

*No trouble occurred, even in high speed operation.

* Suitable for E flute, B flute, A flute lamination of board and board.

*It is able to laminate 5 layer paper board in one pass.

Feeder

 Vacuum suction nozzle type feeder. Paper transmission system is able to

put paper accurately into the machine, and it’s easy to operate. The cyclic

paper piling rack can pile up next batch of paper towels without stop and

enhances the operating efficiency.

Bottom Paper Conveyor Belt

 The suction force produced by the powerful in-draft motor goes through the

holed belt so as to absorb the bottom paper at first. The bottom paper will be

absorbed onto the belt prior to being conveyed into the machine. Under high

speed operating status, paper is sent out accurately and rapidly. So, the belt

is suitable for applications in various patterns of papers and 3/5 layers

corrugated paper.

Main specifications

Model

HT-1300

HT-1450

HT-1650

Max. sheet Size(mm)

1000×1300

1000×14500

1200×1650

Min. Sheet Size(mm)

380×380

380×400

380×500

Speed(pcs/minute)

0~80

0~80

0~80

Power Required (kw)

12.7

12.7

12.7

Dimension (L×W×H)(m)

13.56×21.20×2.6

13.56×22.70×2.6

13.56×23×3

Weight (kg)　　　　

5.5

6

7

Few improvements in product specification and dimension due to technical need will not be informed otherwise
