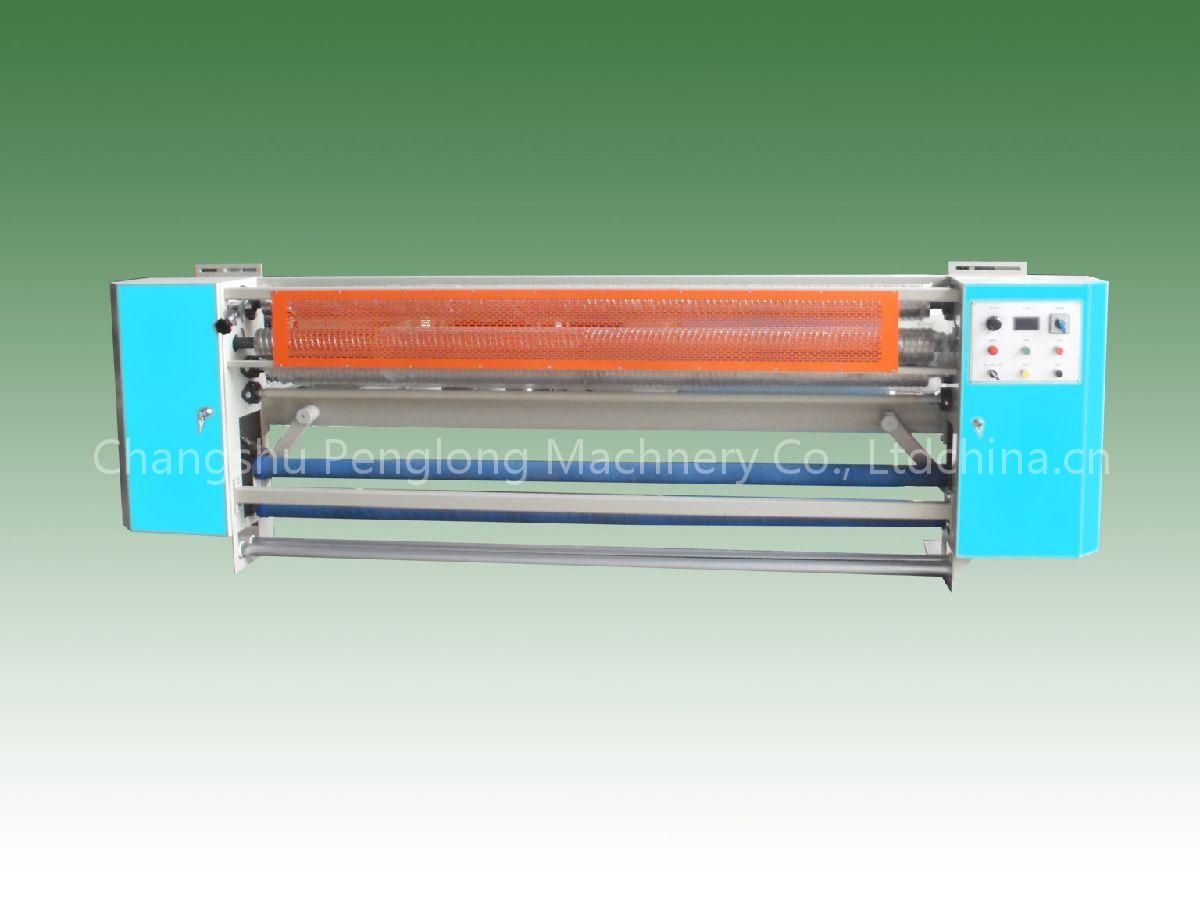

Automatic Centering Machine
Specifications
- Brand
- PENGLONG
- Origin
- China
- Price Term
- CFR
Automatic Centering Machine is a Textile Machine Parts product. Key specs — Brand: PENGLONG; Origin: China; Price Term: CFR.
Product Description
Usage:Auto centering machine is widely used at the feeder of heat-setter, print machine, glue spreading machine, washing machine, singeing machine, drying machine, mercerizing machine and so on.Characteristics: 1.It is equipped with 3 equalizer rolls to spread fabrics in full-width.
2.Infrared photocell covering full-width will make an adjustment immediately when the fabric is off position to align and guide the center position of running fabric on the center position of centering roller without sidesway.
3.It enjoys the advantages of easy to operate, sensitive in reaction, reliable and stable during work.Technical parameters:1 Stainless steel equalizer rolls Ф100mm*3
2 Motor power 1HP*2sets
3 Centering drive Pneumatic, 3kg
4 Imported EO/IR system 1set
5 Fabric width 1800mm~2800mm
