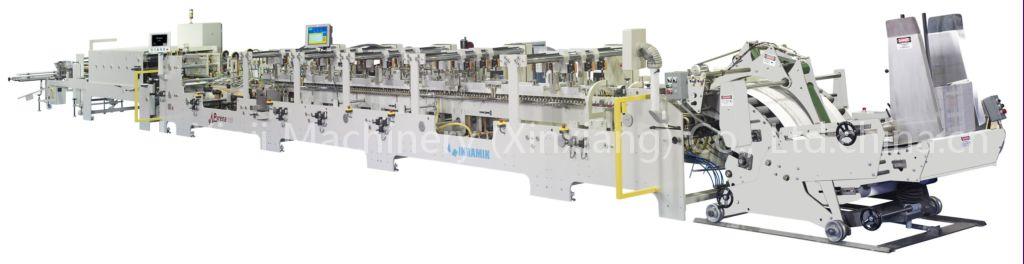

Automatic Carton Folder Gluer
Listing ID#10174845
ModelPYRENA 1150
CategoryPrinting Machine
Printing Machine

Automatic Carton Folder Gluer

Specifications

Origin
China (Mainland)
Request Quote
Quick answer

Automatic Carton Folder Gluer is a Printing Machine product. Key specs — Origin: China (Mainland).

Product Description

FOLDING CARTON GLUER

Gluing Pneumatic press section Transfer Folding and closing 2nd shaft back-folding system and crash-lock bottom 1st shaft back-folding system and pre-folding Side register Feeder Pneumatic press section Pressure regulators Touch screen Digital counters Transfer Folding and closing Crash-lock bottom Back-folding system Lower glue system Prefolding Feeder Side register

TECHNICAL SPECIFICATIONS CUT AND CREASED MATERIALS

Carton and board up to 600 g/m² E, F & N-flute and B corrugated board Max. thickness of a folded box 15 mm

PRESS SECTION Pressure length of aprons 3, 000 mm Aprons width 970 mm Max. thickness between aprons 190 mm

DRIVE Inching speed 25 m/min Variable running speed up to 500 m/min Press section speed 0 - 50 m/min Total power required 45 Kw Max. floor space required 2.50×18 m

STRAIGHT LINE BOXES CRASH-LOCK BOTTOM BOXES 4 CORNER BOXES 6 CORNER BOXES OTHER SPECIAL BOXES
