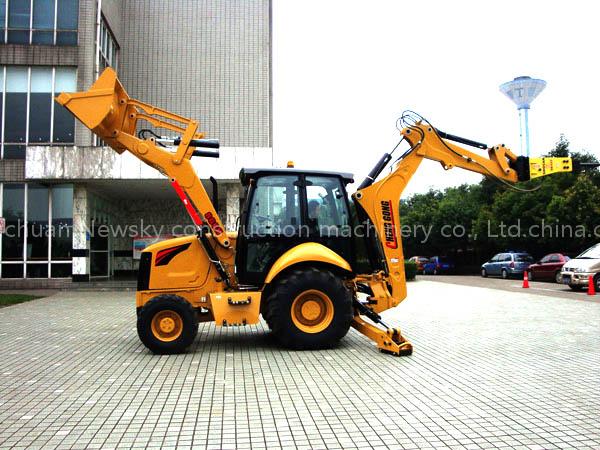

82KW backhoe loader

1. It adopts HUSCO hydraulic components.

2. The spacious cab of this standard backhoe loader is provided with an

adjustable, air-suspending and shock absorbing seat.

3. Its integrated engine cover can be opened backwards.

4. This heavy equipment vehicle has an excavator-style curved arm.

5. This standard backhoe loader can be provided with an optional extension arm.

6. It is also equipped with a bucket return-to-dig system.

7. This standard backhoe loader adopts a Carraro transmission system.

8. Single tilt loader linkage.

9. Standard arm.

10.Parameters

Main Specification 866H

Engine:
Model: 4BTA3.9

Rated Power/Rated Revolution (Kw/R/MIN) : 82/2200

Operating Mass (kg): 9200

Overall DimensionsOverall Size (L×W×H) (mm) : 7313×2440×3920

Loader
Dump Height (mm) 2700

Discharge (°) 45

Dump Reach(mm) 710

Lift Capacity to Full Height (kN) 35.3

Bucket Breakout Force (kN) 60

Bucket Capacity (m3) 1.1

Backhoe (Standard/ Withdrawal/ Extension):
Digging Reach at Ground Level(mm) 5990/6100/7184

Max. Digging Depth (mm) 4649/4769/5915

Max. Working Height (mm) 5917/6002/6827

Max. Dump Clearance (mm) 4168/4252/5078

Bucket Dig Force (kN) 73.1/72.2/72.2

Stick Dig Force (kN) 43.8/42/29.9
