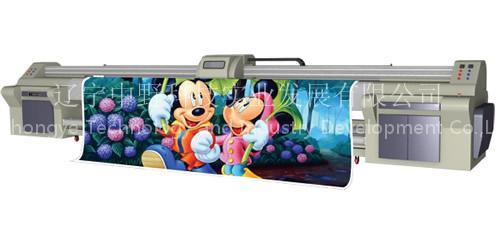

6.8m Heavy duty Solvent Printer with SPT510

1. ZY 6.8m series Large Format Solvent Printers: Adopting SPT printheads,double servo driver, linear guaid rail and servo motor system,Negative ink pressure supply system imported from Japanese enable stable ink supply during printing process,widely used for giant format outdoor banner printing.
high spead and stable working makes zhongye heavy duty printer become the first set of 5-6.8mmature model in chinese market.

The main parameter and standard of ZY-SK6800

Name: 6800(4COLORS) 6800(6COLORS)

Print head: 8/12(spt510) 12/16(spt510)

Speed: 2 pass 110m2/h 2pass 140m2/h

4pass 80m2/h 4pass 96m2/h

6pass 54m2/h 6pass 70m2/h

Resolution: 1440dpi max

Print width: 6.8M

Media width: 6.8M

Color: CMYK LC LM

Dimension: 8.8m*1.4m*1.5m

Net/Gross weight: 1800Kg/2600Kg

Print technology: Drop-on-demand Piezo electric

Locating Mode: Raster /servo

Media Handling: Roll to roll Sheet to sheet

Media Types: Flex banner, vinyl sheet, one way vision, mesh,

PVC fabrics, paper, etc

Ink: Solvent/two-year outdoor lifetime

Drying System: Fan plus heating system in front and forward

File Format: TIFF, JPEG, Postscript 3, EPS, PDF

Rip Software: Photoprint /maintop

Working process: Printmon software for windows xp

Operation Environment: Temperature 18-26 Humidity 40%- 70%

Power Supply: 50hz/60hz 220v(10%)20A

Configuration below is according to different models:

1.Motor: Japanese Panasonic, Fuji AC servo motor;
2.Rail:Japanese THK,Tawinese HWIN;
3.Heating system:front&back double heating;
4.Feed-in&take-up system:IR controlled auto feed-in&take-up system;
5.Printhead cleaning system: positive pressure, vaccum
system:German KNF ink supply system,Japanese negative pressure system

Quality Guarantee:

1. 1 Year Warranty ( without printheads and consumable spare parts of ink system )
2. With the printer, we send you One free spare parts kit including all the consumable spare parts; Software CD and Demo VCD and manual freely. You can learn how to install the machine from the vedio we sent to you.
3. Our engineer can go to clients'place to install the printer as client demanding and teach the client how to operate and maintain the machine. All the service is free. The client only need to pay the air ticket and accommodation charge.
of our engineers who is English-spoken & progfessional of techinical are on line 24 hours. They can offer you on-going service and solve the printer problem at anytime!
