Listing ID#10150884
ModelGW50F
CategoryOther Construction Machinery

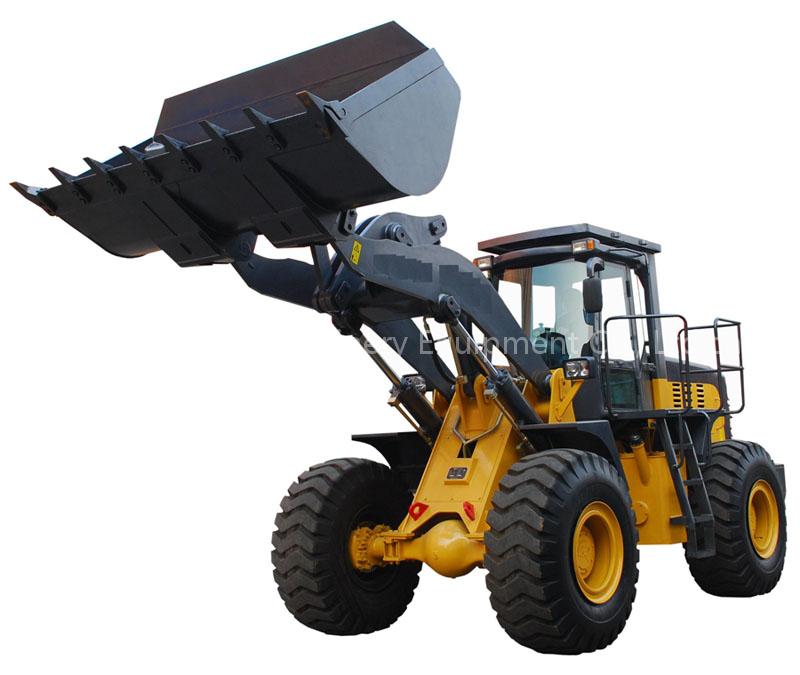

5T wheel loader GW50F
Specifications
- Origin
- China
- Price Term
- FOB
Quick answer
5T wheel loader GW50F is a Other Construction Machinery product. Key specs — Origin: China; Price Term: FOB.
Product Description
| Model | GW50F | |
| Total weight | Kg | 16500 |
| Bucket capacity | m3 | 3 |
| Rated load | Kg | 5000 |
| Movable arm lifting time | S | ≤ 6.5 |
| Three item time | S | ≤ 11.5 |
| Max digging force | KN | 165 |
| Min turning radius | mm | 6770 |
| Traveling speed | Km/h | |
| Forwardâ… gears | Km/h | 0~11.5 |
| Forwardâ…¡gears | Km/h | 0~38 |
| Reverse gears | Km/h | 0~16 |
| Max slope angle | ° | 28 |
| Dumping height | mm | 3200 |
| Dumping reach | mm | 1180 |
| Overall dimensions(L×W×H) | mm | 7840×2950×3450 |
| Engine model | WD615G.220 | |
| Engine rated power | KW | 162 |
| Fuel tank capacity | L | 280 |
| Hydraulic oil tank capacity | L | 210 |
