Listing ID#10150842
ModelLW6
CategoryOther Construction Machinery

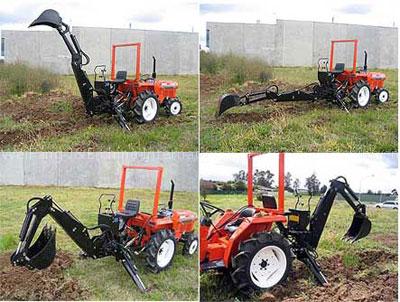

3 Point or Frame Mount Hitch Backhoe
Specifications
- Origin
- china
Quick answer
3 Point or Frame Mount Hitch Backhoe is a Other Construction Machinery product. Key specs — Origin: china.
Product Description
3 Point or Frame Mount Hitch Backhoe
for 18 hp -70 hp tractor
Bucket size and Cap.
for 18 hp -70 hp tractor
Specifications LW Series Quick Attach Type 3 Point Hitch Backhoe
| Model | LW-6 | LW-7 | LW-8 |
| Max.digging depth (mm/inch) | 1850/73 | 2150/85 | 2640/1046 |
| Max.digging depth flat bottom (mm/inch) | 1600/63 | 2000/79 | 2500/98 |
| Max. digging height (mm/inch) | 2500/98 | 3400/134 | 3510/138 |
| Loadover heith (mm/inch) | 1400/55 | 1760/69 | 2000/79 |
| Transport height (mm/inch) | 1733/68 | 1878/74 | 1952/77 |
| Ground clearance (mm/inch) | 280/11 | 290/11 | 290/11 |
| Boom pivot height (mm/inch) | 420/16 | 500/20 | 500/20 |
| Straight wall digging depth (mm/inch) | 895/35 | 1134/45 | 1446/57 |
| Max.digging radius (mm/inch) | 2800/110 | 3360/132 | 3930/155 |
| Loading reach (mm/inch) | 1044/411 | 1187/47 | 1945/77 |
| Bucket rotation(angle) | 160 | 160 | 160 |
| Swing Arc(angle) | 140 | 140 | 140 |
| Size(mm/inch) | 250/10 | 300/12 | 400/16 | 450/18 | 500/20 |
| Package (length X width X height) Two LW-6: 2.25m X 1.25m X 1.10m Two LW-7: 2.25m X 1.40m X 1.10m One LW-8: 2.25m X 1.10m X 0.80m Single package is also available for choice when customers only buy one unit each time; The size of the cylinders in LW-6, LW-7 and LW-8 is almost the same, only different in external diameter and length. And the stabilizer cylinders in these three models backhoe are of same size. Following is the detail information.; Stabilizer cylinder: External diameter: 83mm, Inside diameter: 63mm, Diameter of piston: 35mm, Length: 522mm |
| LW6 | LW7 | LW8 |
| Boom cylinder: External diameter: 83mm Inside diameter: 63mm Length: 532mm Bucket cylinder: External diameter: 83mm Inside diameter: 63mm Length: 532mm | Boom cylinder: External diameter: 83mm Inside diameter: 63mm Length: 615mm Bucket cylinder: External diameter: 83mm Inside diameter: 63mm Length: 615mm | Boom cylinder: External diameter: 83mm Inside diameter: 63mm Diameter of piston: 35mm Length: 527mm Bucket cylinder: External diameter: 100mm Inside diameter: 80mm Diameter of piston: 45mm Length: 662mm |
