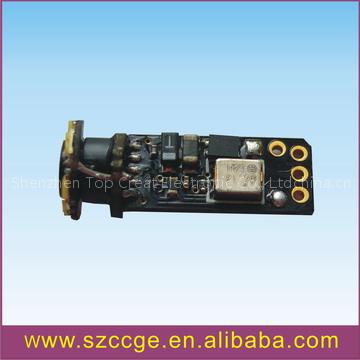

1/18" Endoscopic Camera Module
Listing ID#10065719
ModelCCGE-2048
CategoryMedical Gas Equipments
Medical Gas Equipments

1/18" Endoscopic Camera Module

Specifications

Brand
CCGE
Origin
China(Mainland)
Price Term
FOB
Request Quote
Quick answer

1/18" Endoscopic Camera Module is a Medical Gas Equipments product. Key specs — Brand: CCGE; Origin: China(Mainland); Price Term: FOB.

Product Description

Module Size:(D)×(L)

Φ4mmX12mm

PCB Size: (L)×(W)

4mm X8mm

Image Sensor

OV6920 1/18″,CMOS Sensor

Effective Pixels

320X240

Horizontal Resolution

240 TVL

Sync System

Inter-sync

S/N Ratio

42 dB

AWB

Switch control

Video Signal

CVBS NTSC

Validity Focal Length

5mm — 100mm

Vision Angle

90°

Gamma attenuation

0.45

Video Output

1 Vp-p, 75 Ohm composit

Power Supply

3.3V-5.0V/DC 30 mA

4Pin Output

power,earth wire,Video,AWB

Storage Temperature

-30℃to 60℃

Working Temperature

-10℃to 50℃
