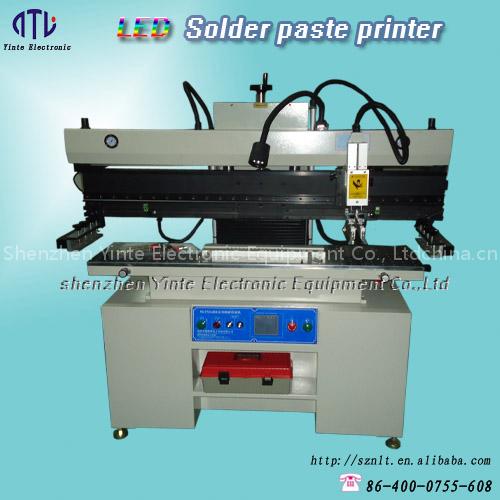

1200mm LED solder paste printer

Specifications: Model 818E(special for LED)Dimensions 1650*620*1550(mm)Platform Size 320*1300(mm)PCB Size 250*1250(mm)Template Size 550*1480(mm)Printing Speed 0~8000(mm)/MinPCB Thickness 0~100(mm)PCB Tuning range Front/Side + 10mmPower supply 1PAC220V 50/60HZPlatporm height 880(mm)Repeatability +/-0.01mmPositioning mode Outside/Reference holeWeight Approx.380Kg Features: to Korea rolling high-speed guide-rail and scrper,which derived by frequency conversion variable speeds motor,in order to make sure printing can slide back and forth to choose printing board, magnetic thimble which can move platform is more applicable to double sided board,it has extremely high Songxia Programmable PLC and human-computer interface screen, operat easily and convenience man-machine alarm of clean steel mesh is convenient for scrubbing steel mesh in time,which can make sure quality of , pressure,stroke of scaper can be adjusted, steel scraper and rubber scraper can also scaper system make printing faster,scaper can float up or down freely and self-regulation into horizontal position with steel mesh
