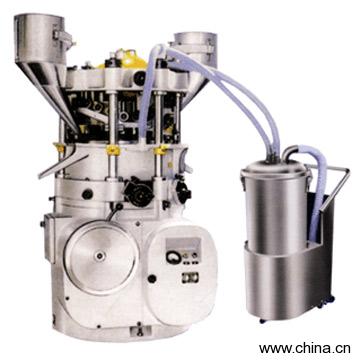

zp25 Tablet Press

Model No.: Product Origin:China Brand Name: Price Terms: Payment Terms: Certification: Description:Application:This machine is a double-press type, continous automatic tablet press for pressing granular raw materials into tablets.

It is mainly used in pharmaceutical industry and also the chemical,food,electronic industries.Characteristics:Produce all kinds of round tablets and irredgular machanism of the machine belongs to double-press type,including two sets of feed assemblage and press-roller unit.

The turret carries 25 sets of movable-punches and dies, so 50 tablets are produced by each revolution of the truuet totation. When round tablets are pressed, there are four sets of punches and dies to choose. 1-tablet mode of punch and die through 4-tablet mode of punch and die.

The choice is dependent on the diameters of the this machine is more suitable for mass operate, the speed of the turret rotation, the depth of the filling material and the thickness of tablets are adjustable.A independent suction unit is attached to the residual power during operation can be taken in by this suction unit through its nozzles and hoses.

Thus the blockage by clustered power is eliminated and the collected power material can be technical specification Dies 25sets Max.Pressure 60KN of Tablet 20mm Max.Depth of Fill 15mm Max.Thickness of Tablet 9mm Turret Speed 6-10 r/min Production Capacity4000pc/h Motor 3kw 950r/min 380/50 V/Hz Overall Size 1100×1100×700mm Net Weight 1800kg
