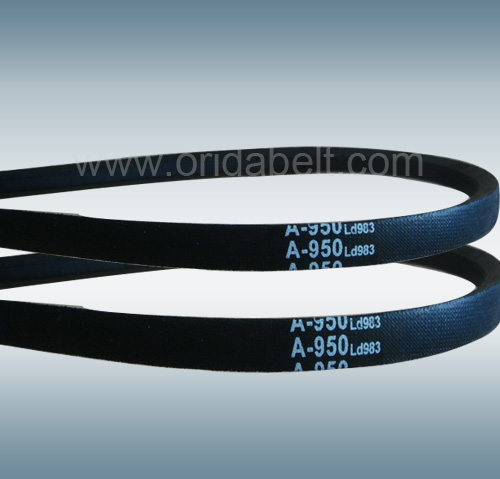

wrapped V-belt

Description: classical V-belt ,wrapped V-belt , narrow V-belt ,rubber V-belt ,vee belt , V-belts , wedge V-belt , pulley belt , motor V-belt ,drive belt , power transmission belt , industrial V-belt

Classical V Belts are especially suitable for drives with high belt speeds and are used in industrial and agricultural machinery. Since they need upto 50% smaller pulley widths than classical sections, this allows for a substantial size reduction in drives. Since most new drives these days use universal pulleys, the classical belt can in most cases be replaced with a narrow V-belt, thereby achieving better power transmission efficiency that eventually results in a longer belt life

Application:

Classical V-belts are an all-round drive belt with a wide range of applications in both industrial machinery and agricultural equipment. like water pump , compressor and etc

Section Size Of Ribbed V belt
Type	WXT(mm)	Pitch Width Wp(mm)	Mini.Pulley Diameter(mm)	Belt Length(mm)
Z	10X6	8.5	63	360-2007
A	13X8	11	71	356-6000
B	17X11	14	112	533-13000
C	22X14	19	170	1800-15000
D	32X19	27	300	1800-15000
