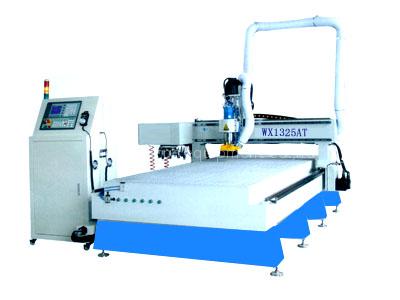

wood cnc router

Specification

WX1325AT

X-Y-Z axis working area

1,300 x 2,550 x 200mm

Machine size

2,500x 3,100mm

Resolutions

0.025mm

X-Y movement

rack and pinion, gear drive

Z movement

ball screw drive

Max. speed

60,000mm/min

Max. cutting speed

25,000mm/min

Spindle

5Kw, water cooling, 24,000rpm

Drive motors

Servo

Working voltage

AC380V/50-60Hz, 3-phase

Command code

G code

Computer interface

USB 2.0

Collet

BT30

Software

Type3 Software (Original English Version)

Controls

LNC 500i system

Equipments included

a, Vacuum hold down:AC380V/50-60Hz, 5.5Kw,3 phases b, Oil lubrication system

Packing dimensions

3500 x 2750 x 2100mm， 2,500kgs
