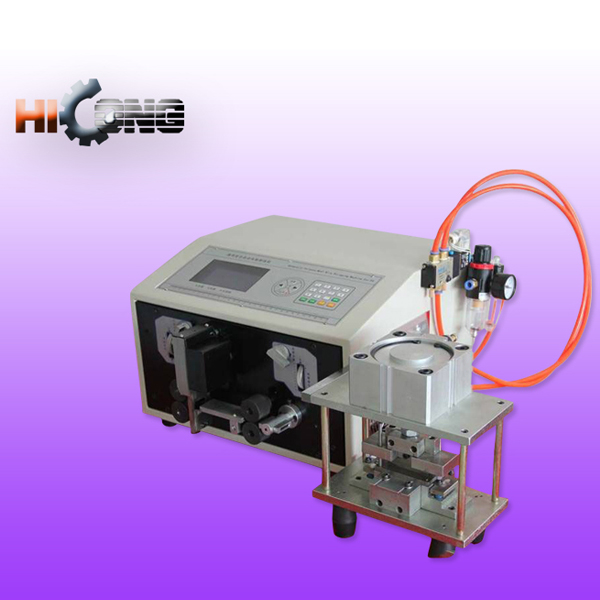

wire stripping machine
Specifications
- Origin
- China
- Price Term
- EX-Work
- Payment Term
- T/T
wire stripping machine is a Electronics Production Machinery product. Key specs — Origin: China; Price Term: EX-Work; Payment Term: T/T.
Product Description
wire stripping machine :
1.This is fullyautomated machine that performs high speed computerized wire cutting and
stripping on both ends
2. LCD display of full pictures, full screen operations display, clear and user friendly.
3.Designed with memory function for faster and more convenient production configuration.
Feature:
Available Core Cross-Section Range: 2 ~ 12P( with split wire function)
Conduit Diameter: 80×25×2mm
Cutting Length: 1-150000mm
Stripping Length: Head 0~50mm, End 0~50mm
Max. Middle Stripping Section: 12P
Motor Step Angle Accuracy: 3-phase 6 shot 1.5/3
Cutting Tolerance: ±(0.002×L) (L=Cutting Length)
Speed: 3000~5000pcs/hour
Display Way: English LCD dispaly
Drive Mode: 4 Drives
Blade Material: Hard tungsten steel
Appropriate Wire: PVC, Teflon, glass wire
Power Supply: 220V/50Hz 110V/60Hz
Power Rating: 350W
