wire saw

Diamonrd wire saw is widely used for quarrying,stationary machine and profile cutting. It can cut all types of stone and concrete,included the hardest or most abrasive ones.

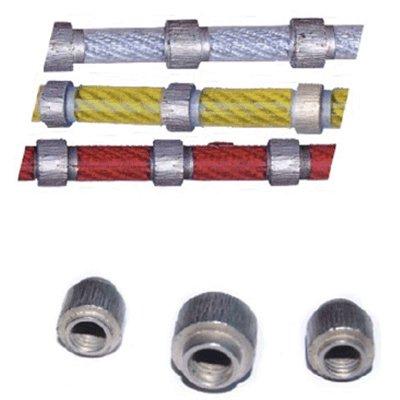

Diamond beads are made from steel cylinder which surrounded by a diamond ring on. Diamond ring normally is produced by sintering or electro . Primal diamond wire alternately composed of beads and springs with steel carrier inside. With the requirement for cutting granite,marble and other abrasive like concrete, it is fitting the beads by plastic or rubber,it can effectively protect the abrasion of the steel carrier and reduce the risk when diamond wire break.

1: diamond wire saw for granite quarry

Performance

diameter	beads/m	fitting	cutting material	line speed	cutting speed(m2/h)	cutting life(m2/m)
11/11.4MM	40	rubber	low rigidty granite	26-30	5-8	12-15
			mid-hardness granite	22-24	2-6	8-12
			hard granite	20-22	1-4	6-10

2:diamond wire saw for profile cutting

Performance

diameter	beads/m	fitting	cutting material	line speed	cutting speed(mm/Min)	cutting life(m2/m)
8.5MM	37	rubber plastic	low rigidty granite	26-30	10-15	10-13
			mid-hardness granite	24-28	5-12	8-12
			hard granite	20-23	4-8	4-7

3:diamond wire saw for block cutting

Performance

diameter	beads/m	fitting	cutting material	line speed	cutting speed(mm/Min)	cutting life(m2/m)
10MM 10.5MM 11MM	37	rubber plastic	low rigidty granite	26-30	10-15	10-18
			mid-hardness granite	24-28	5-12	8-15
			hard granite	20-23	4-8	4-8

4:diamond wire saw for concrete cutting

Performance

type	diameter	beads/m	fitting	line speed	cutting life(m2/m)
fast cutting	11/10.5	40	rubber+spring	18-21	1-2
standard Reinforced	11/10.5	40	rubber+spring	18-21	1-2
high Reinforced	11/10.5	40	rubber+spring	18-21	1-2

4:diamond wire saw for steel cutting

Diamond wire saw use	Diameter	Beads/m	Weight Kg/m
Granite quarry	11	40	0.29
	11.5	40	0.31
Marble quarry	11	28	0.34
Granite profile cutting	8.8	37	0.19
Marble profile cutting	8.8	33	0.18
Block cutting	10.5	37	0.26
	11	37	0.28
	11	40	0.29
Concrete cutting	11	40	0.38
Steel cutting	11	40	0.36
