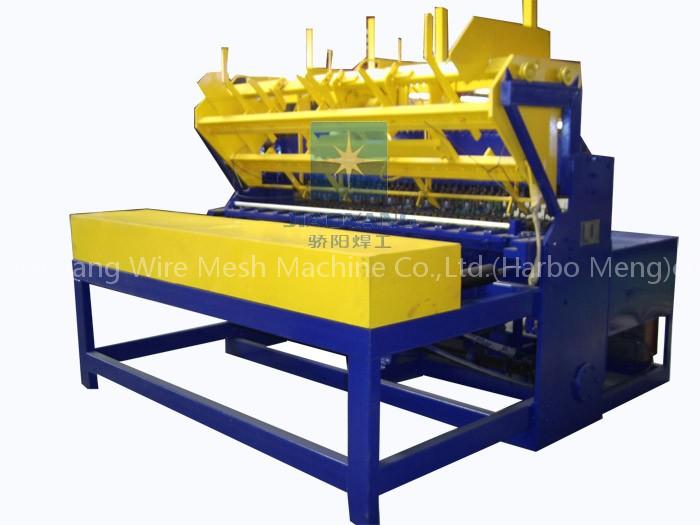

wire mesh welding machine

Function Characteristics: motor powerThis machine adopts electrical & electronic synchronous control technique both cent-control and welding time is composed of digital and integrated electric circuit.

This opeartion is accurate,it has stable function ,firm welded point and without welded tracks.Cross wires are needed to be straightened and cut ,then put into the motor controls fallen wefts hopper structure and drawing material is automatic (this technology has won the nation patent ZL200220024381.3),so it is accurate.The line wire is fed from edge of mesh is regular and it is unnecessary to slice the side.

Drawiong mesh panel system adopts elastic tension link(that won the nation patent ZL200520024380.9)and mesh opening size positioning device,it is easy to regulate the mesh hole and mesh opening size is rather accurate,welding aperture could adjust randomly with range.

Not only welding speed is fast but also it is easy to learn and two men can finish the operation.The finished products can be in coil or in panel.Technical parametersWire diameter 3.0-4.5.mm Line wire In coil wire

Cross wire space 50-200mm Cross wire In pre-cut wire

Line wire space 50-200mm Rated voltage 380V

Width of mesh(max.) 1600mm Rated power 100KVA×4

Welding speed 45times/min Overall dimension 2.2 x 2.5 x 1.8M

Number of line wires 33 Machine weight

Applicationwelded mesh for mine timbering and construction
