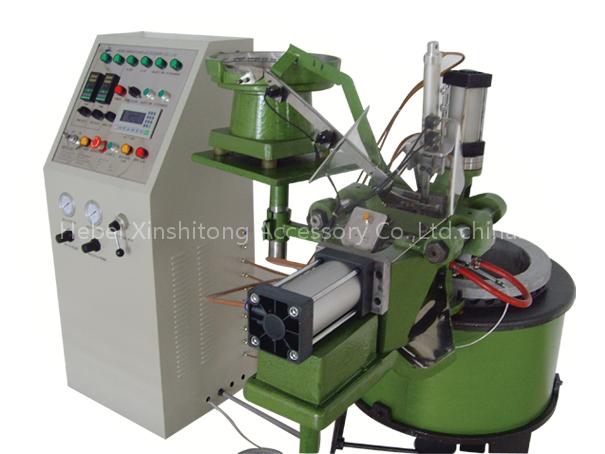

wheel weight making machine

• Weight style: All Passenger and Light Truck Rims (adhesive and clip-on)
• Weight material: Zinc, Lead (PB)
• Weight size: 5gm/ 0.25Oz -100gm/ 3.5 Oz

Complete with:

• - 2 Water cooled mechanical unit
• - Control Cabinet (220/380V AC/24V DC)
• - Injection mechanical complete set( 220-240VAC/2KW/50-60Hz)
• - Cylinder System(4-6 Bar/0.4-0.6 Mpa)
• - Elctronic furnace complete set (LPG furnace is optional)
• - Vibrator(220-240VAC/50-60Hz)
• - Clip dispensing system
• - Automatic error recognition and shutdown device

Advantages:

• Clip fixing device to make sure uniform clip gaps.
• Patent sprue and dies for easier adjustment and avoiding sprue jam. Patent No.201020117335.9
• Patent injection device for higher production speed.Patent No.201020117344.8
• Pneumatic circuit work, no need of hydraulic oil;
• High efficient and low power consumption, electronic heater;
• Auto clip dispensing system;
• Automatic exam and injection funtion;
• Automatic Error Recognition and Shutdown Device

Optional:

• Clip guide (10,15,20mm)
• Slide
• Backjaw (10,15,20mm)
• Mould(5-60g)

Wheel weight moulds can be customized.
