Listing ID#10145634
Modelwire mesh
CategoryOther Security & Protection Products

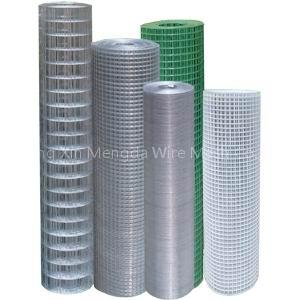

welded wire mesh
Specifications
- Origin
- Anping Hebei
- Price Term
- FOB
Quick answer
welded wire mesh is a Other Security & Protection Products product. Key specs — Origin: Anping Hebei; Price Term: FOB.
Product Description
Materials for welded wire mesh:Galvanized iron wire,hot-dip galvanized iron wire,PVC coated wire,stainless steel wire.
Forms of supply:welded wire mesh is supplied in rolls or panels.
Applications:welded wire mesh is mainly used fencing for buildings and factories,as animal enclosure and fence in agriculture and other uses.
| Mesh | Wire Diameter | ||
| In Inch | In MM | Wire Gauge | In MM |
| 1/4" x 1/4" | 6.4mm x 6.4mm | 22#-24# | 0.7mm-0.6mm |
| 3/8" x 3/8" | 10.6mm x 10.6mm | 19#-22# | 1.0mm-0.7mm |
| 1/2" x 1/2" | 12.7mm x 12.7mm | 16#-23# | 1.6mm-0.6mm |
| 5/8" x 5/8" | 16mm x 16mm | 18#-21# | 1.2mm-0.8mm |
| 3/4" x 3/4" | 19.1mm x 19.1mm | 16#-21# | 1.6mm-0.8mm |
| 1" x 1/2" | 25.4mm x 12.7mm | 16#-20# | 1.6mm-0.9mm |
| 1" x 1" | 25.4mm x 25.4mm | 14#-21# | 2.0mm-0.8mm |
| 11/2" x 11/2" | 38mm x 38mm | 14#-19# | 2.0mm-1.0mm |
| 1" x 2" | 25.4mm x 50.8mm | 14#-16# | 2.0mm-1.6mm |
| 2" x 2" | 50.8mm x 50.8mm | 12#-16# | 2.6mm-1.6mm |
