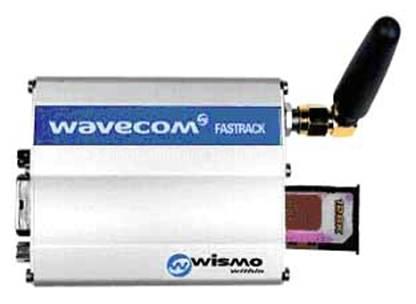

wavecom M1306B is a Telecommunications product. Key specs — Origin: China (Mainland).
Product Description
M1306B France original equipment Q2406 embedded TCP AgreementM1306B France WAVECOM Origine(On sale)M1306B original WAVECOM France MODEM,can be used in repeater, GPS positioning system vehicle management,SMS software,wireless remote monitoring,wireless POS,mobile office as well as medical care and other fields.
1,support the standard AT command set, in line with the WAVECOM Q2406B module. 2,integrated dual-band GSM / GPRS modem (EGSM900/1800MHz or EGSM900/1900MHz),applied to data,fax,short message and voice applications.
3,the design and development in line with the ETSI GSM Phase2 +standard (general phone) 4,size: 70 × 54 × 25mm-+2 mm 5,input voltage: 6V-40V Input current: 5mA standby, 140mA call in a state of GSM900MHZ 12V 5mA standby, 100mA call in a state of GSM1800/1900MHZ 12V 6,limit environmental conditions: Operating temperature: -20 ° C to 55 ° C Storage temperature: -25°C to 70°C Humidity:0-95% Vibration (non-working):18g pressure:86 106KPa 7,the support of the SIM card: You can also support the SIM card 3V/5V 8,the receiving frequency range: (EGSM 900):925 to 960 MHz (GSM 1800):1805 to 1880 MHz Send frequency range: (EGSM 900): 880 to 915 MHz (GSM 1800): 1710 to 1785 MHz Interval of carrier frequency 200kHz.
9,the transmitter of the root-mean-square phase error
