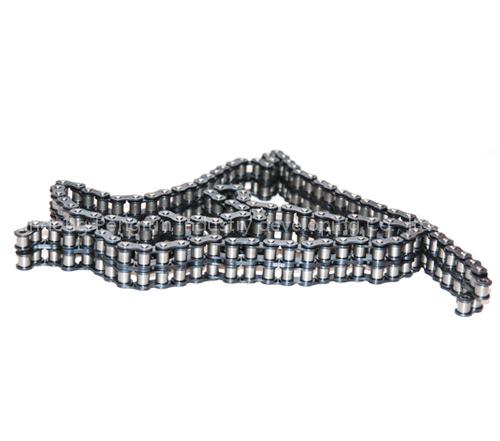

walking tractor chain

DIN ISO
Chain NO.

Pitch

Roller diameter

Width Between inner
plates

Pin Diameter

Pin length

InnerPlate depth

Plate thickness

Transterse pitch

Ultimate tensile strength

Average tensile stength

Weight permeter

P

d1 max

b1 min

d2 max

L max

Lc max

h2 max

t/T max

Pt

Q min

Qo

q

mm

mm

mm

mm

mm

mm

mm

mm

mm

KN/LB

KN

kg/m

08B-2

12.7

8.51

7.75

4.45

31.2

32.2

11.8

1.6

13.92

32.0/7273

38.7

1.34

12A-2

19.05

11.91

12.57

5.94

48.8

50.5

18.0

2.42

22.78

63.60/14455

82.1

2.92

12AH-2

19.05

11.91

12.57

5.94

55.3

57.1

18.0

3.25

26.11

63.60/14455

84.5

3.71
