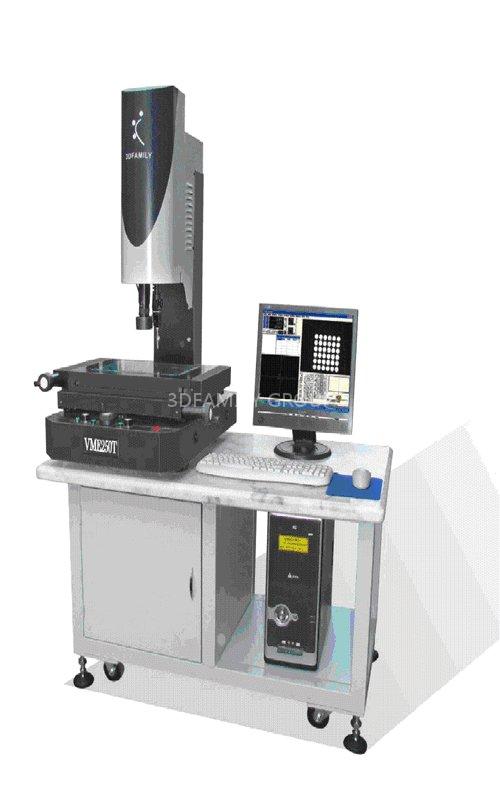

vision measuring machine-VME series

2. 3D FAMILY-E lens, with Step-Zoom orientation lens, needs no linear calibration at fixed multiple with the software.

3. Multi-use calibration flake is as attachment of the machine, used both for teach drilling and precision calibration.

4. OVM vision measuring software developed by ourselves.

5. As VME-T, England RENISHAW touch probe can be chosen to match, diameter 1 or 2 probe being matched, can do measuring on tridimensional workpiece with TPM measuring software.

Model type: VME 250 & VME 300 & VME 400 & VME 500

Measuring Range (X/Y/Z) (mm): 250*150*200 & 300*200*200 & 400*300*200 & 500*400*200

Machine dimension (mm): 800*500*1650 & 980*650*1650 & 1160*800*1650

Operation mode: manual

Image system: 410, 000 pixel 3D FAMILY E color CCD

Lens: 3D FAMILY-E Step-Zoom freezing fixture lens

Magnify zoom: Step Zoom

Optical magnify zoom: 0.7X-4.5X

Image magnify zoom: 28X-180X

Measuring system: OVM

X/Y/Z optical ruler resolution: 1um

Repeatability: 2um

X/Y measuring precision: (3+L/200)um

Machine load capacity: 30kg

Applicable environment

Power: 110V~220V+ or - 10% 50/60HZ

Temperature: 20+ or -5ºC

Humidity: 45%-75%

Free maintaining time: One year maintaining

Applied fields

Mobile phone fittings, precision fixture, family-used machines, precision pressing, linker, circumjacent fields of the computer and so on.
