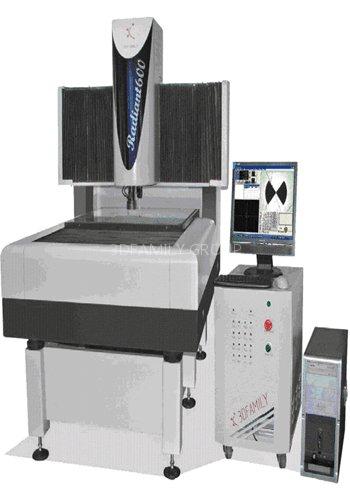

vision measuring machine-Radiant Series(CNC)

2. Imported optical ruler to insure the precision and stability.

3. CNC control system for the 4 axes (X/Y/Z full closed loop servo control system/ U stepping control system).

4. American NAVITAR lens, with Motor Zoom technology, can do full automatic continuous zooming and changing multiple needs no calibration.

5. OVM Pro full automatic vision measuring software with strong function developed by ourselves.

6. As Radiant-T, England RENISHAW touch probe can be chosen to match, diameter 1 or 2 probe being matched, can do 3D measuring on tridimensional workpiece with TPM Pro measuring software.

Model type: Radiant 500 & Radiant 600

Measuring Range (X/Y/Z) (mm): 400*500*250 & 620*620*200

Machine dimension(mm): 1040*1270*1900 & 1200*1800*1900

Operation mode: CNC

Image system: 430, 000 pixel Japanese original color CCD

Lens: American NAVITAR Motor Zoom automatic zoom lens

Magnify zoom: Motor Zoom

Optical magnify zoom: 0.7X-4.5X

Image magnify zoom: 28X-180X

Measuring system: OVM Pro

X/Y/Z optical ruler resolution: 1um

Repeatability: 2um

X/Y measuring precision: (3+L/200)um

Machine load capacity: 30kg

Applicable environment:

Power: 110V~220V+ or -10% 50/60HZ

Temperature: 20+ or -5ºC

Humidity: 45%-75%

Free maintaining time: One year maintaining

Applied fields:

PCB, car and corresponding fitting, machine fitting, linker and so on.
