vga capture card

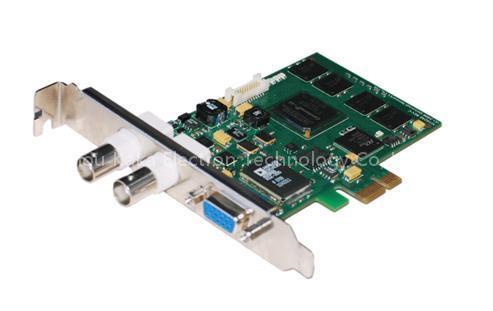

XI102AE VGA/CVBS video capture card is a versatile capture product .It combines all capture functions from single channel VGA capture and duel channel AV (CVBS) video capture card, which also has an advantage of high-performance, high-integration, and multi-function.

In order to solve the problem of low resolution for VGA capture card on the market, XI102AE VGA/CVBS video capture card uses a most advanced ADI ADC and a high-speed PCI-E interface. Besides, XI102AE VGA/CVBS can capture VGA streams at resolutions of up to 1920x1440 in a 64-bit palette with DDR2 memory on board,.

What's more, the specification of XI102AE VGA/CVBS video capture card is twice more than that of other devices in the VGA capture card line, such as Input Conversion, Memory, and Interface. Channel Duel channel CVBS Video;Single channel VGA CVBS input type PAL/NTSC

CVBS Maximum capture format PAL: 720x576 25fps,UYVY color format.NTSC:720x48030fps,UYVY color format. VGA rate 1600x1200x85Hz,RGB24:30fps1280x1024x85Hz,RGB24:45fps1024x768x85Hz, RGB24: 80fps

Memory 256MB.DDR2/64bit/133MHz VGA capture format RGB 16/24/32YUY2

Dimension 106mm x 72mm Interface PCI-E 1x

VGA Maximum input bandwidth 230MHz VGA scan mode Progressive scanning

VGA video mode support 640x480, 800x600, 1024x768, 1152x864, 1280x720, 1280x800, 1280x960,1280x1024, 1440x900, 1600x1200, 1680x1050, 1920x1080, 1920x1440

Others Auto-detect VGA input resolution; auto-remove black margin from capturing pictures; support Firmware upgrade on-board.
