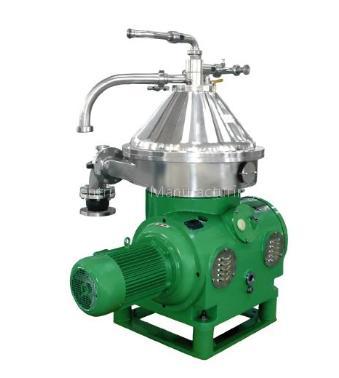

vegetable oil separator

Features of Products and Application:PDSV series automatic discharging separator is special equipment for oil and fat refining, it has the traits as high rotating speed, operating stability, completely sealed up of the inlet and outlet system, lower noise and fine separating affection. Centripetal pump system designed by our professional designer has the trails as stability outlet pressure, large regulating sphere and operating easily, Also this series separator has professional automatic domination case with safety protection devide, advanced automatic vibrating testing instrument can view vibrating number at any time,We can make separating and discharging to the best affection from regulate separating parameter directly at the screen.

This machine products are widely used in degum, de-soap and water washing technology in vegetable oil refinery, It can also be used for refining of animal oil and mineral oil, and liquid-liquid and liquid-solid separations of light industry, chemical industry, medicine and food industry. PDSV series are used in pigment separating

Characteristics: Full-automatic vibration detector can monitor the vibration strength value of the centripetal pump at any time, and can also alarm automatically when the vibration value exceeds standard value

Automatic alarm for oil leakage and automatic heavy-phase sealing device

Display with touch screen and automatic controlling instrument for industrial computer

Heavy-phase centripetal pump adopts European advanced electric positioner control

Adjust the diameter of heavy-phase centripetal pump automatically.

Technical Data

Model	Capacity(L/H)	Inlet pressure(Mpa)	Outlet pressure(Mpa)	Motor Power(kw)	Weight(kgs)	Overall Dimension(cmxcmxcm)
PDSV360	1200-2500	0.05	0.1-0.25	7.5	1280	1500X1150X1500
PDSV470	2500-7000	0.05	0.1-0.3	15	1880	1800X1200X1800
PDSV550	6000-15000	0.05	0.1-0.3	22	2200	1850X1550X2050
PDSV700	15000-30000	0.05	0.1-0.3	37	3300	2050X1700X2300
