Listing ID#10234520
Model1LZ
CategoryOther Farm Machines
Quick answer

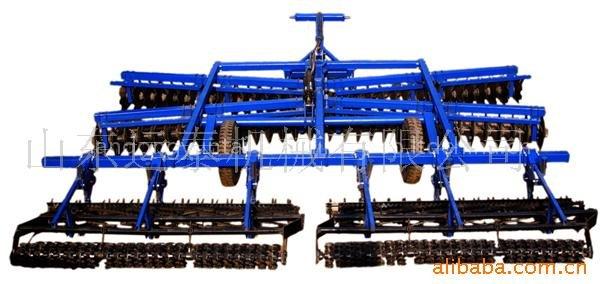

unites entir machine is a Other Farm Machines product. Key specs — Origin: china; Price Term: FOB.
Product Description
Especially machable with wheeled tractor, with shovel under hanging frame, lead screw at the end of the frame to connect roller which is used to break up clod, spring-tooth rake between shovel and roller to lossen soil. Do not need to turn over soil, prepare land with onestop, with reasonable structure, easy to use.
item | Unit | 1LZ-3.6 | 1LZ-4.2 | 1LZ-5.4 | 1LZ-7.2 |
Working width | mm | 3600 | 4200 | 5400 | 7200 |
Working depth | mm | 120 | 120 | 120 | 120 |
Dia. of disc | mm | 460 | 460(510) | 460(510) | 460(510) |
spacer | mm | 170 | 170 | 170 | 170 |
Dismensions | mm | 6600*3800*800 | 6600*4400*800 | 6600*6500*800 | 6600*9200*800 |
Working speed | km/h | 7-9 | 7-9 | 7-9 | 7-9 |
Matched power | hp | 90-100 | 100-120 | 120-140 | 150-180 |
