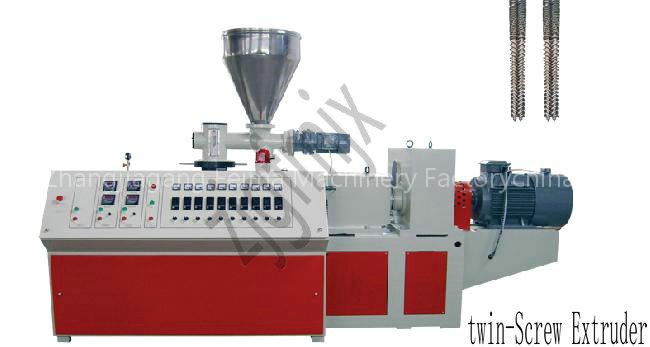

twin-screw plastic extruder
Specifications
- Origin
- China
- Price Term
- FOB
Quick answer
twin-screw plastic extruder is a Other Plastic & Rubber Machinery product. Key specs — Origin: China; Price Term: FOB.
Product Description
can directly convert thermoplastic special RPVC powder into pipe, plate sheet, film and profile
Performance structure:
SJSZtwin-screw plastic extruder, plastic extruder, twin screw extruder with apporpriate screws, dies and other auxiliaries can directly convert thermoplastic special RPVC powder into pipe, plate sheet, film and profile, and also provide fuction of modifying and pelleting.
Main technical parameters:
| Model | SJSZ45 | SJSZ51 | SJSZ55 | SJSZ65 | SJSZ80 | SJSZ92 |
| Screw diameter(mm) | 45/90 | 51/105 | 55/110 | 65/132 | 80/156 | 92/188 |
| The number of screw | 2 | |||||
| Turn screw | Different to the outside | |||||
| Screw speed(r/min) | 1-45 | 1-45.5 | 1-40 | 1-38 | 1-36.9 | 1-34 |
| The effective work of the length of screw(mm) | 1000 | 1050 | 1150 | 1430 | 1800 | 2520 |
| Main Motor Power(kw) | 15 | 15 | 22 | 37 | 55 | 90 |
| Cylinder heating power (kw) | 12 | 12 | 18 | 24 | 36 | 48 |
| Production capacity(kg/h) | 95 | 110 | 150 | 250 | 380 | 520 |
| Machine Center High(mm) | 1000 | |||||
| Net Weight(kg) | 3000 | 3200 | 4200 | 5000 | 6500 | 7500 |
