Product Description

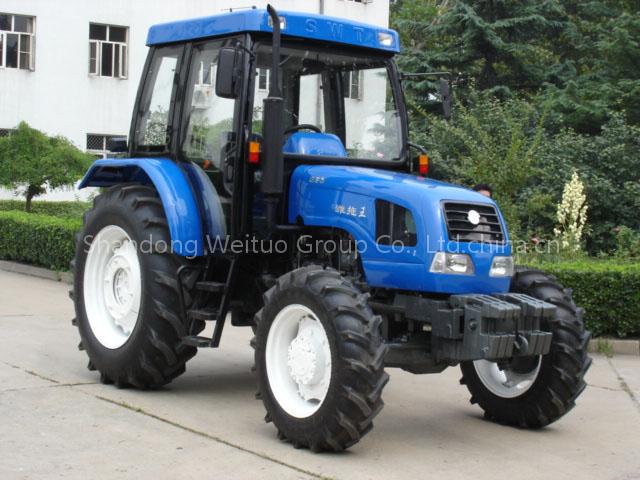

| ModelSWT854-954 series tractor is in top position among the same industry inChina and its matched power is R4105T diesel engine which power is85/88hp. This tractor adopts fully hydraulic steering and hydraulicbraking system. Its hydraulic suspension adopts catalogue II,tri-point, synthetic draft and position control. Joggling sleeve isequipped for its gearing shifting. Independently operated two stageclutch, reasonable shift gears (8 forward shifts and 2 reverse shifts),two rev. PTO according with international standard, its wholesuspended, independent and combined airproof cab and adjustable treadare equipped with it. It is not only suitable for various field work,transportation and fixed tasks, but also for muddy fieldwork andengineering tasks. Model SWT-854-884as four wheel drive tractor isdesigned by installing a front drive axle on Model SWT850-950. Itstraction is improved on a large scale and is more suitable to mountainareas and muddy roads. | |||||||
Main Technical Specifications | |||||||
Model | SWT854 | SWT884 | SWT904 | SWT924 | |||
Type | 4x4 wheeled type4WD | ||||||
Main Dimensions of Tractor (mm) | Lenth | 4430 | |||||
Width | 2030(Wheel base1600) | ||||||
Height | 2760 | ||||||
Tread | 2395 | ||||||
Wheel base | Front wheel | 1650 | |||||
Rear wheel | 1600-2000 (with 4 steps extension, each space 100mm) | ||||||
Min.Ground Clearance | 385 | ||||||
Radius of turning circle (mm) | 4900 | ||||||
±200 | |||||||
Structure mass(kg) | 3600 | ||||||
Tyre | Front tyre | 11.2-24 | |||||
Rear tyre | 16.9-34 | ||||||
Clutch | Dry-friction. Single Plate. Constant Engagement. Independent Operated Dual-action | ||||||
Steering | Hydraulic Steering | ||||||
Gearbox | Shifts | 8F+2R shift | |||||
Speed（Km/h） | 2.613-33.68 | ||||||
Hydraulic equipment | 1.Horizontal single oil tank,Draft & position-responsive control, Top-link sensing | ||||||
2.Double vertical oil tanks, power lifting up & down system | |||||||
Suspension | Post-positioned Tri-point Suspension Catalogue II | ||||||
PTO shaft | Tyre & rev. | Independent 540/1000 or 740/1000 | |||||
Spline | Ⅰ35Rectangle Spline with 6 teeth,Ⅰ38 Rectangle Spline with 8 teeth,Ⅰ48Rectangle Spline with 8 teeth, II 35 involute Spline with 21 teeth | ||||||
Working equipment | Hydraulic output (option) | One Plate with Two Output Connectors or Two Plate with Four Output Connectors（matching with hydraulic equipment 1） | |||||
Trailer brake (option) | Air brake | ||||||
Engine | Model | R4105ZT | R4110T | ||||
Type | 4-cylinder，vertical，water cooled，4-stroke and direct injection | ||||||
Rated rev.(r/min) | 2200 | 2300 | |||||
Rated power(kW) | 62.5 | 65 | 66.2 | 68 | |||
Fuel | Diesel | ||||||
| Structure and specification are subject to change without notice. | |||||||
