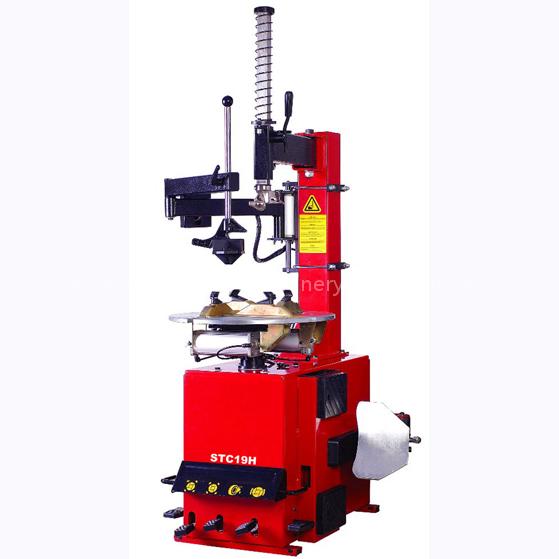

tire changer

Features:

1. The complete bead breaker cylinder is made of steel iron, more durable.

2. The complete clamping cylinder with Ø80 diameter, the seal ring and the piston are integrated, less resistance.

3. The complete gearbox made of aluminum alloy, light and more durable.

4. Semi-automatic side swing arm.

5. Pneumatic bead breaker.

6. Simple left help arm.

7. Optional: motorcycle adaptor.

Specifications:

Motor power:

0.75kw/1.1kw

Power supply:

220v/380v/110v

Max. wheel diameter:

38'' (960mm)

Wheel width:

3" -13" (330mm)

Rim clamping from outside:

10" -18"

Rim clamping from inside:

12"-22"

Air supply:

8bar - 10bar

Bead-breaker force:

2500kg

Noise level:

<70dB

Package size:

97x75x95cm

Weight:

178kg/191kg
