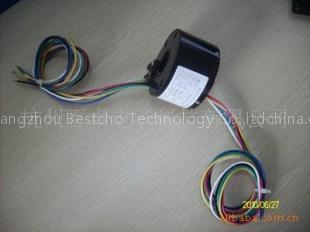

through bore slip ring HSR1254 series

Advantage

1, Make use of advanced sheaf brush technology to design and manufacture

2, Suffice 360°unrestrained continuous rotation to transmitting power and/or data

3, Long use-life, maintenance-free

4, Product modularize

5, All technology can up to international standard

6, Can make any slip ring as customer’s requirement

Description
　　A slip ring can be used in any electro-mechanical system that requires unrestrained, continuous rotation while transmitting power and/or data from a stationary to a rotating structure. A slip ring is also called a rotary electrical interface, collector, swivel, or a rotary joint. A slip ring can improve system performance by simplifying operations and eliminating damage-prone wires dangling from movable joints.
　　A slip ring are metal rings that provide a continuous electrical connection through brushes on stationary contacts.
　　It’s configuration is column type. each ring lies along the drum axis, like threads on a bolt.
The RSH1254 series uses sheaf brush technology which offers several advantages over conventional slip ring contacts, including multiple points of contact per brush bundle, low contact force per brush, low noise and low contact wear rates. In addition, sheaf brushes do not require lubrication and produce virtually no wear debris.

Applications

• Rotary index tables, machining centers etc Industrial machinery
• Cable reelst,est equipment and machining centers
• Heavy equipment turrets
• Packaging machines, magnetic clutches, palletizing machines
• Process control equipment
• Rotary sensors, robotics, emergency lighting
• Display/ Medical equipment, Exhibit equipment

Electrical data:

Mechanical data:
