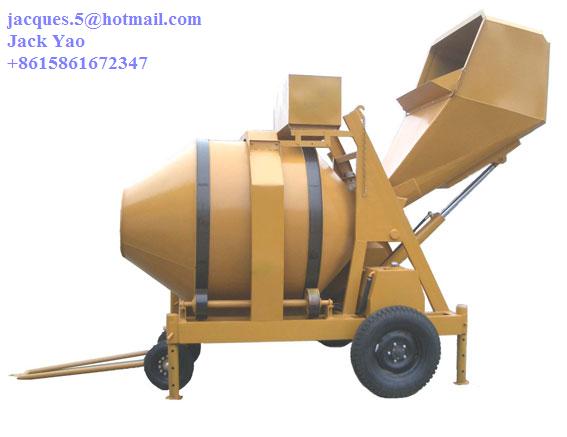

three bags cement concrete mixer

Topall, expert on concrete mixers,dumpers,block machines,concrete batching plants,vibrators,lifters,rollers and loaders.

You could either contact Jack Yao by calling Jack Yao for more details.

Model (HS code:847431000) RDCM500-16DH(JZR500)

Capacity of discharging 750L

Capacity of loading 500L Capacity: 18-22cubic meters per hour

Pump water pump with water tank, water level indicator

Drum rotating speed 13r.p.m

Power source YANMAR

Total power 16.2kw

Gear case Mechanical gear box with friction clutch

Dimension 3750*2240*3800mm

Weight 2050kg

One time mix 3 bags of 50kg cement

(Exported to: maurituria\Western Sahara\Senegal\Gambia\Mali\Bukina Faso\Guinea\Guinea-Bissau\Cape Verde\sierra leone\Liberia\Cote d'Ivoire\Togo\Benin\Niger\Nigeria\Central Africa\Cameroon Cameroun\Equatorial Guinea\Gabon\Congo\The Democratic Republic of the Congo)

Reversing Drum Concrete Mixer

750L Discharging Capacity Concrete Mixer

18cft concrete mixer

The drum rotates in one direction for mixing and in the opposite direction for discharging the concrete. There are two types of blades attached to the inner walls of the drum. One set drags the concrete upwards and toward the center of the mixer when the drum rotates in one direction; the second set of blades pushes the concrete toward the opening when the drum rotates in the other direction. The blades have a spiral arrangement to obtain the desired effect for discharging and mixing.
