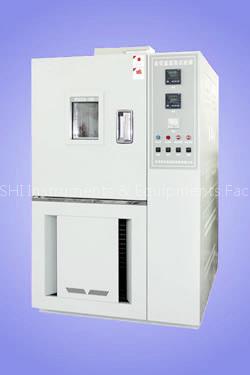

temperature test chamber

This product is suitable for high/low temperature adaptability tests for Electric, Electronic Instruments, meters and other products, spare parts and materials, in stock, transport and using in high/low temperature environment.Features: 1.Refrigeration TechniqueTogether with French "TECUMSEH"/ Germany "COPELAND" Expert of refrigeration, we designed and developed refrigeration plan to keep longer refrigeration and to be according to environment protection.

By regular refrigeration technique, it is easy to satisfy different grade test temperature request, such as -20~+150degrees, -40~+150 degrees, -70~+150 degrees, -85~+150 degrees etc. By liquid Nitrogen refrigeration technique, we can satisfy -180 ~+150 degrees. 2.

Chamber humidity controlling techniqueSpecial structure design of chamber, with high quality import temperature, humidity sensor and controlling meter, can be sure of precise of temperature and humidity, it makes easy to control test temperature deviation, and also we can enhance the precise controlling by your request. 3.

Control SystemOperation automatically, simply is the tendency of our control system design, by this you could spend much more time in test result research. 4. ProcessBy following international standard, our products get up to international quality. 5. Regular Technical dataTemp. Fluctuation: 0.5degrees (As request it can be 0.1degrees)Temp.

Uniformity: 2.0degrees (As request it can be 0.1degrees)Temp. Warp: 2.0 degrees (As request it can be 0.1degrees)Heat Up Time: 2-3degrees/min (As request it can be 10degrees)Pull Down Time: 0.7-1degrees/min (As request it can be 10degrees)6.

Standard and Test MethodsGB11158 High temperature test chambers technical conditionsGB10589 Low temperature test chambers technical conditionsGB10592-89 High/Low temperature testing chambers technical conditionsGB/T2423.1-2001Low temperature chambers technical testing methodsGB/T2423.2-2001High temperature chambers technical methodsGB/T2423.22-2001 Temperature changes testing methodsGJB150.3 High temperature TestGJB150.4 Low temperature Test7.

Safety ProtectionSafety configuration: Current discharge protection, Circuit break protection, Compressor over load protection, Fan over load protection, over temperature protections, Phase sequence/ Short phase protection. 8.Size: (D*W*H) (The size can be designed according to your request)Model Internal Dimensions(mm) External Dimensions (mm)

SGD-50 320*350*450 790*800*1320

SGD -100 500*400*500 970*850*1370

SGD -150 500*500*600 970*950*1470

SGD -250 520*630*780 1060*997*1740

SGD -500 700*800*900 1182*1250*1880

SGD -800 800*1000*1000 1250*1500*1930

SGD -010 1000*1000*1000 1450*1500*1930
