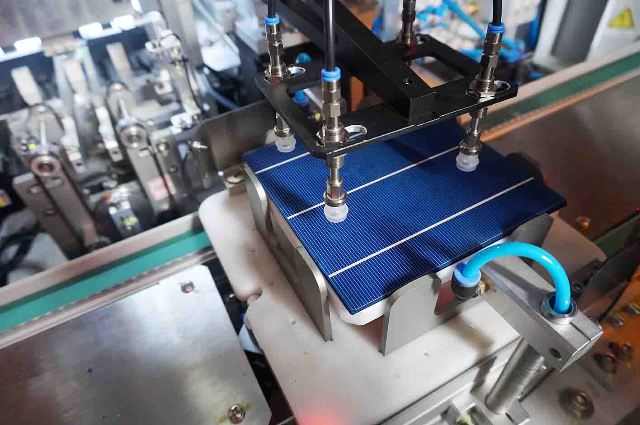

stringer

Mode B210SA

Name Auto solar cell tabber&stringer

Capacity 1200pcs/h

Capacity/year 20-25mw

Object Mono/poly solar cells front&back side contacted

Cell Alignment via camera for edge positioning

Cell inspection vision system (camera), detection of accuracy, broken edges

Applicable cell 125*125mm,156*156mm

Cell thickness 0.16~0.25mm

Cells Size 5″or 6″,2BB、3BB、4BB、5BB

Max. length of strings 1910mm

Throughput max. 1,200 pcs/hour, 1,018 pcs/hour for a 10 cell-string

Ribbon Auto-feeding 2 ribbons or 3ribbons

Ribbon sizes Thickness 0.16-0.25mm,length 150～350mm

Ribbon positioning accuracy on cell ≤0.3mm

Soldering technology IR

Breakage rate Cell thicknesses down to 0.20mm, ≤2‰(varies according to cell quality)

Soldering temp Room temp-400℃(adjustable)

Control System PLC

Air pressure 0.4~0.7mpa 100L/min

Power 16kw

Voltage AC-380v 50/60Hz

Cell max numbers 12pcs/line

Dimensions 4900(L)X1400(W)X2300(H)mm

Weight About 2500kg

Flux application method for cells metered micro spray, both sides as standard

Operator interface English/Chinese
