Listing ID#10099069
ModelYL-50/20
CategoryLighting Bulbs & Tubes

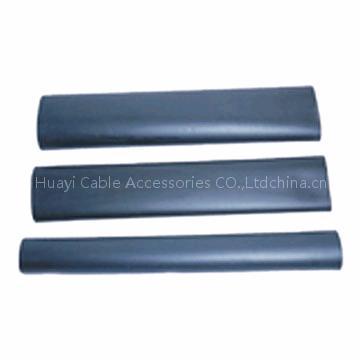

stress control tubing
Specifications
- Brand
- heag
- Origin
- China (Mainland)
Quick answer
stress control tubing is a Lighting Bulbs & Tubes product. Key specs — Brand: heag; Origin: China (Mainland).
Product Description
anti tracking stress control tube releases the high electrical stress present at insulation screen in termination and joint for power cables etc. Availabe spec. is 30/10 35/14 42/18 50/20 50/20 60/25 70/30 and 150/50 etc.
| Specification | Before shrinkable (Dia of inside) | After shrinkable (Dia of inside) | wall thickness after shrinkable | length | color |
| YL-φ30/10 | 30±1 | 10 | 2.0±0.2 | 900 or 1000mm | black |
| YL-φ35/14 | 35±1 | 14 | |||
| YL-φ42/18 | 42±1 | 18 | |||
| YL-φ50/20 | 50±1 | 20 | |||
| YL-φ50/20 | 50±1 | 20 | 2.5±0.2 | 900 or 1000mm | black |
| YL-φ60/25 | 60±1 | 25 | |||
| YL-φ70/30 | 70±1 | 30 | |||
| YL-φ150/50 | 150±1 | 50 |
