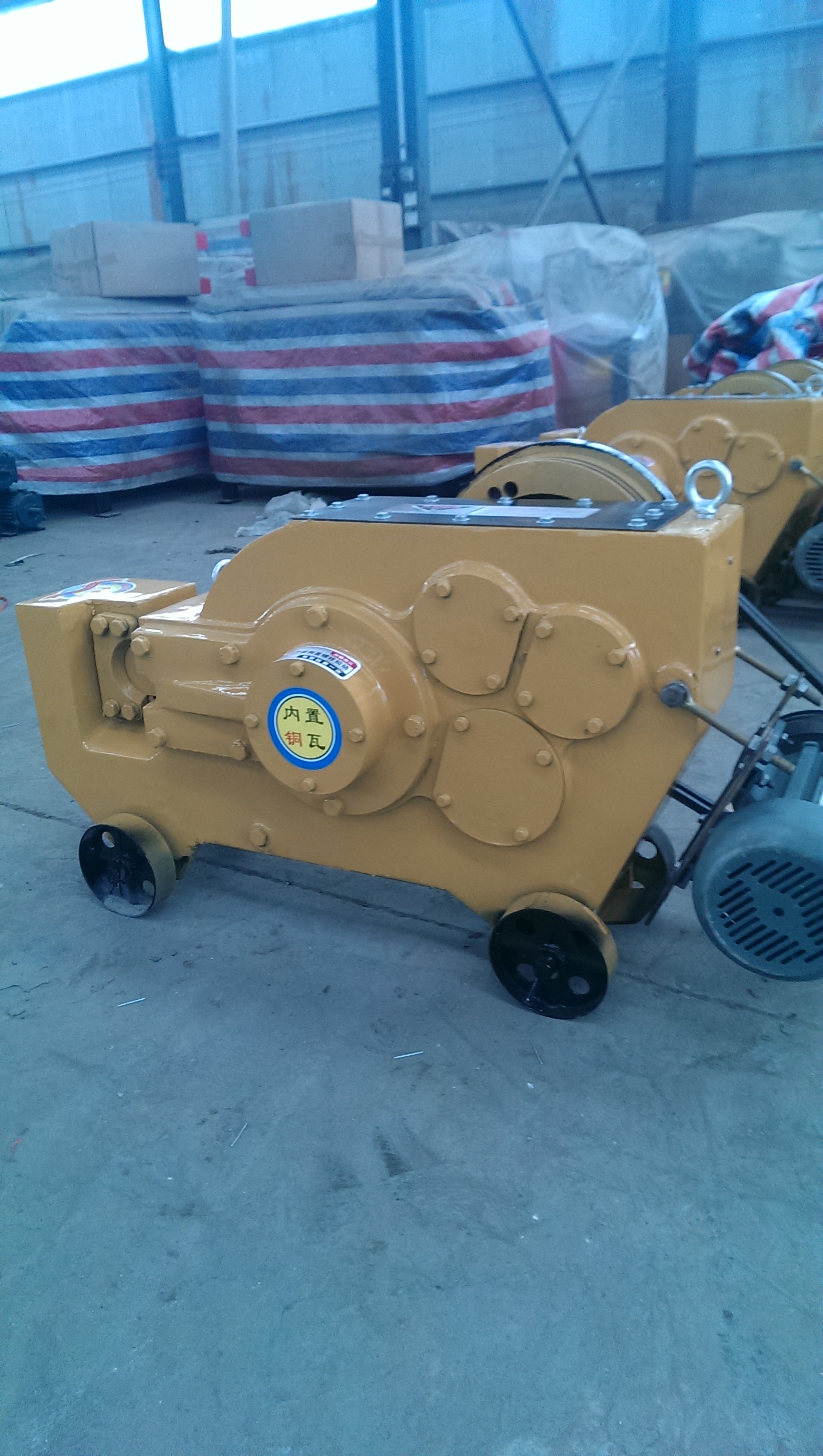

steel bar cutting machine

1)Specification of steel bar cutting machine 1.Low power loss 2.1 years warranty 3.Easy operation 4.CE ISO9001, military quality 5.High speed cutting machine 2)Usage of steel bar cutting machine: Steel bar cutting machine has high speed and good efficency.

It can be applied to cut the normal carbon steel rod, hot rolled steel and deformed bar in machine processing and construction projects, also suit for square steel and flat steel.At the same time, this cutting machine has steady performence and reliable quality. equipment from china for the small business 3)Main Features of steel bar cutting machine: 1.Enhanced machine rack, small volume, compact structure, solid and reliable.

2.Good lubricating property, adopt anclosed gear box, use the gear splashing to realize lubrication. It could be continuous work two months after adding 8kg gear oil. 3.Less function loss because of the lubrication improvement. The gear section adopts rolling bearing, less resistance.

Compared with same type cutting machine, load power canbe reduced by one third. 4.Using high rigid cutting head, connecting rod and high speed national standard motor, guaranteed a more stable quality and longer service life. 5.It’s convenient to be moved and maintenance.

4)Main Technical Parameter of steel bar cutting machine: Model: GQ26 Power: 2.2 kw Weight: 300kg Oversize(mm): 1200*310*630 Rebar diameter: 6-26mm II-grade deformed steel bar diameter:6-25mm Model GQ40 GQ42 GQ50 Round bar diameter 6-40mm 6-42mm 6-50mm II-grade deformed bar 6-32mm 6-36mm 6-40mm Power 3 KW 3 KW 4 KW Weight 350 KG 380 KG 450 KG Oversize (mm) 1310×460×760 1345×440×770 1410×460×810
