Listing ID#10201418
ModelSJG
CategoryBeverage & Wine Processing Machinery
stationary cargo table
Specifications
- Brand
- XUNTE
- Origin
- China
Quick answer
stationary cargo table is a Beverage & Wine Processing Machinery product. Key specs — Brand: XUNTE; Origin: China.
Product Description

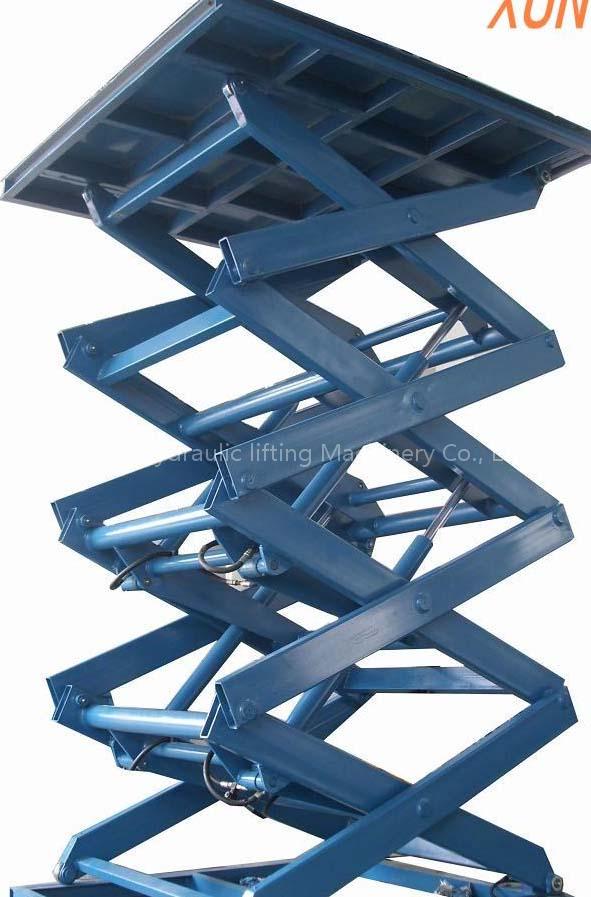

Stationary Lift table
Feature:
1, High wroking frequency
2, Stable lifing height, high load capactiy
3, Perfect compact structure
Feature:
1, High wroking frequency
2, Stable lifing height, high load capactiy
3, Perfect compact structure
Safety:
1. With safe protection device avoiding the lifting platform overloaded
2. With safe protection valve avoiding the hydraulic pipe broken
3. Emergency lowing device in the condition of power-cutting
4. Its quality liability insurance is undertaken by China PALC insurance Company.
| Model | Rated load (kg) | Low height(mm) | Vertical Travel(mm) | Platform size(mm) | Motor Power(kw) | Total weight (kg) |
| SJG0.3-3 | 300 | 650 | 3000 | 2000*1200 | 1.1 | 780 |
| SJG0.5-5 | 500 | 850 | 5000 | 2000*1000 | 2.2 | 1200 |
| SJG1-3.3 | 1000 | 840 | 3300 | 1900*1500 | 3 | 1300 |
| SJG1-4.3 | 1000 | 860 | 4300 | 2500*2000 | 3 | 2500 |
| SJG1-6 | 1000 | 1230 | 6000 | 2200*1500 | 2.2 | 2500 |
| SJG2-3.5 | 2000 | 1000 | 3500 | 2200*1500 | 3 | 1800 |
| SJG3-4.5 | 3000 | 1060 | 4500 | 2200*1800 | 4 | 2200 |
| SJG1.5-3 | 1500 | 820 | 3000 | 1800*1200 | 2.2 | 1480 |
| SJG2-4.8 | 2000 | 980 | 4800 | 2000*2000 | 4 | 2200 |
| SJG2-6 | 2000 | 1150 | 6000 | 2200*2000 | 5 | 2800 |
| SJG1-8 | 1000 | 1320 | 8000 | 2200*1800 | 4 | 3000 |
