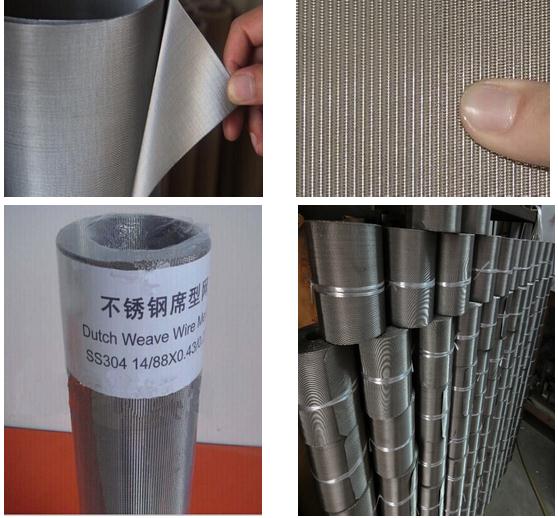

stainless steel wire mesh

Stainless Steel Wire Mesh 1.Material : Stainless steel wire SUS304, SUS304L, SUS316, SUS316L,SUS431,SUS310s, SUS321, SUS430 etc 2.Mesh count&wire diameter 4mesh / 2.03mm (0.08") 8mesh / 1.6mm (0.063") 10mesh / 1.2mm (0.047") 12mesh / 0.89mm (0.035") 16mesh / 0.71mm (0.028") 20mesh / 0.58mm (0.023") 325mesh/0.035mm(0.0014") 400mesh/0.030mm(0.0012") 500 mesh/0.025mm(0.001") 12X64 mesh 0.023"/0.017" 24X110 mesh 0.014"/0.010" 30x150 mesh 0.009"/0.007" 3.Features: Corrosion resistance/Anti-acid and alkali/Anti-high temperature/Good filter performance/Long using life 5.Application: In acid, alkali environment conditions sieving and filtering.

Petroleum industry as mud mesh,. Chemical fiber industry as screen mesh. Plating industry as acid cleaning mesh We have the ability to weave them in Plain Weave, Twill Weave, Plain Dutch Weave, Twill Dutch Weave and Reverse Dutch Weave.

Mesh/Inch Wire Diameter Aperture Open Area Weight(LB) /100 Square Foot Inch MM Inch MM 1x1 .080 2.03 .920 23.37 84.6 41.1 2X2 .063 1.60 .437 11.10 76.4 51.2 3X3 .054 1.37 .279 7.09 70.1 56.7 4X4 .063 1.60 .187 4.75 56.0 104.8 4X4 .047 1.19 .203 5.16 65.9 57.6 5X5 .041 1.04 .159 4.04 63.2 54.9 6X6 .035 .89 .132 3.35 62.7 48.1 8X8 .028 .71 .097 2.46 60.2 41.1 10X10 .025 .64 .075 1.91 56.3 41.2 10X10 .020 .51 .080 2.03 64.0 26.1 12X12 .023 .584 .060 1.52 51.8 42.2 12X12 .020 .508 .063 1.60 57.2 31.6 14X14 .023 .584 .048 1.22 45.2 49.8 14X14 .020 .508 .051 1.30 51.0 37.2 16X16 .018 .457 .0445 1.13 50.7 34.5 18X18 .017 .432 .0386 .98 48.3 34.8 20X20 .020 .508 .0300 .76 36.0 55.2 20X20 .016 .406 .0340 .86 46.2 34.4 24X24 .014 .356 .0277 .70 44.2 31.8 30X30 .013 .330 .0203 .52 37.1 34.8 30X30 .012 .305 .0213 .54 40.8 29.4 30X30 .009 .229 .0243 .62 53.1 16.1 35X35 .011 .279 .0176 .45 37.9 29.0 40X40 .010 .254 .0150 .38 36.0 27.6 50X50 .009 .229 .0110 .28 30.3 28.4 50X50 .008 .203 .0120 .31 36.0 22.1 60X60 .0075 .191 .0092 .23 30.5 23.7 60X60 .007 .178 .0097 .25 33.9 20.4 70X70 .0065 .165 .0078 .20 29.8 20.8 80X80 .0065 .165 .0060 .15 23.0 23.2 80X80 .0055 .140 .0070 .18 31.4 16.9 90X90 .005 .127 .0061 .16 30.1 15.8 100X100 .0045 .114 .0055 .14 30.3 14.2 100X100 .004 .102 .0060 .15 36.0 11.0 100X100 .0035 .089 .0065 .17 42.3 8.3 110X110 .0040 .1016 .0051 .1295 30.7 12.4 120X120 .0037 .0940 .0064 .1168 30.7 11.6 150X150 .0026 .0660 .0041 .1041 37.4 7.1 160X160 .0025 .0635 .0038 .0965 36.4 5.94 180X180 .0023 .0584 .0033 .0838 34.7 6.7 200X200 .0021 .0533 .0029 .0737 33.6 6.2 250X250 .0016 .0406 .0024 .0610 36.0 4.4 270X270 .0016 .0406 .0021 .0533 32.2 4.7 300X300 .0051 .0381 .0018 .0457 29.7 3.04 325X325 .0014 .0356 .0017 .0432 30.0 4.40 400X400 .0010 .0254 .0015 .370 36.0 3.3 500X500 .0010 .0254 .0010 .0254 25.0 3.8 635X635 .0008 .0203 .0008 .0203 25.0 2.63
