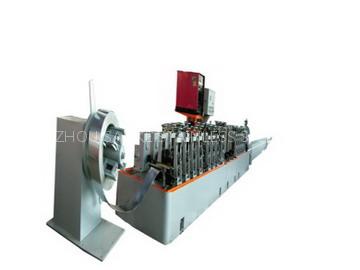

stainless steel welded pipe mill

The industrial pipe making machine can produce stainless steel pipe which is widely used in pressure vessel, heat-exchanger, oil & gas, petro-chemical, chemical, automobile, engineering etc.

The Main Parameters of Industrial Pipe Making Machine[/b]

Model

GZG30

GZG40

GZG50

GZG60

GZG70

GZG80

GZG90

Driving motor power(kw)

5.5kw-4

7.5kw-4

11kw-4

15kw-4

18.5kw-4

22kw-4

30kw-4

Main size (m)

6.39*0.96*1.82

6.884*1.2*1.85

7.47*1.35*1.92

9.94*1.43*2.0

11.10*1.48*2.05

12.28*1.56*2.07

13.28*1.68*2.08

Pipe range (mm)

6-25.4

12.7-38.1

16-50.8

31.8-76.2

50.8-114

88.9-159

127-219

Wall thickness (mm)

0.3-1.2

0.8-2.0

1.0-2.5

1.2-3.0

1.5-4.0

1.5-5.0

1.5-6.0

Welding speed (m/min)

0.8-4.0

0.8-3.0

0.5-2.5

0.4-2.0

0.3-1.5

0.3-1.2

0.2-1.0

Tolerance of out diameter

Completely reach to GB/T12271-2000 standard
