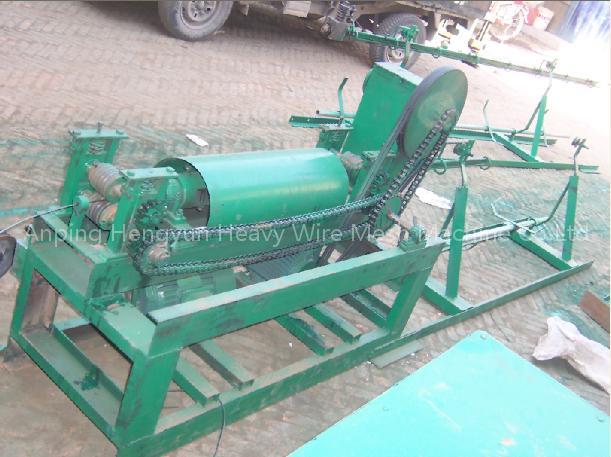

staightening and cutting machine

　The machine has four types. Adjustable diameter by 1.5-26mm, The cut-off length may have custom-made according to the customer request can be uesed to straighte and cut the stainless steel wire, the aluminum wire, the cold wire drawing, the package plastic skin steel wire and so on. With neat margin, good performance.
GT/5-12 straightening and cutting machine
Main technical parameter:
1. Straightening scope : 5mm-12mmCold rolling belt rib steel bar, Cold for silk
6mm-12mm NewⅢLevel steel bar
2. Straightens the link speed: 0.7m/s
3. Straightens the length: 2－12m
4. Cut-off error: ±5mm
5. Cut-off way: Hydraulic pressure automatic installed capacity
6. Capacity: 11.5KW
7. Weight: 2.3T

　GT/10-20Bar Straightening Machine
　Main technical parameter:
　1. Straightening scope : 10mm-16mm NewⅢLevel steel bar
　10mm-20mm NewⅠLevel steel bar
　2. Straightens the link speed: 0.6m/s
　3. Straightens the length:2mm-12mm
　4. Cut-off error: ±5mm
　5. Weight: 3.5T

　GT/4-10 Reinforced straighten cutter
　Main technical parameter:
　1. Straightening scope:4mm-10mmCold rolling belt rib steel bar, Reinforced-round
　2. Cut-off error: ±5mm
　3. Straightens the link speed: 25－38m/min
　4. Capacity: 5.1KW
　5. Straightens the length:1.5m-10m
　6. Cut-off way: Machinery cut
　7. Weight: 600KG
