spiral fabric is a Mining Machinery product. Key specs — Origin: China; Price Term: FOB.
Product Description

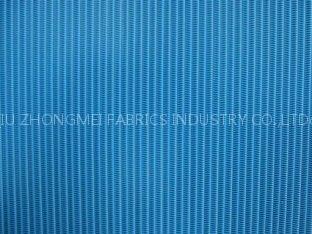

Polyester spiral dry fabrics is suitable for the dry part of paper machine, printing and dyeing machine, also for other special industry fabrics, such as wash coat and horizontal delt ;
it is convenenient, longevous, prone to be meded, and it is cheaper than mesh.
Type | Specification of single loop | Monofil diamater mm | Strength | Thickness mm | Weight of mesh m2kg |  Air permeability | |
Spiral loop monofil | Threading | ||||||
Super loop | 4.8X10 | 0.9 | 1.1 | 2300 | 3.03 | 1.64 | 21000 |
Large loop | 3.8X7.0 | 0.68 | 0.9 | 2000 | 2.45 | 1.40 | 18000 |
Medium loop | 3.5X6.0 | 0.68 | 0.9 | 2000 | 2.45 | 1.31 | 16000 |
Small loop | 3.2X5.2 | 0.5 | 0.8 | 1800 | 1.87 | 0.97 | 15000 |
